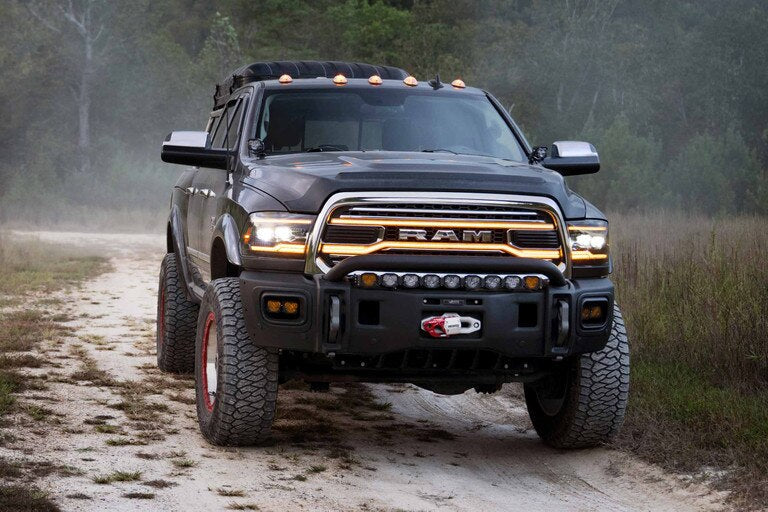

The Most Common Issues with Aftermarket LED Headlights on 2017+ Ram 1500 & 2500 (And How to Fix Them)
Upgrading to LED headlights on a 2017+ Ram 1500 & 2500 sounds simple- brighter output, modern look, better visibility. But Ram trucks are NOTORIOUS for electrical quirks that make aftermarket LEDs misbehave like a toddler. If you've dealt with flickering, CANBUS errors, moisture buildup, or DRL failures, you're not alone.
This guide breaks down the real reasons these problems happen and the proven fixes Ram owners rely on.
_____________________________________________________________________________________________________________
1. Persistent Flickering After Installation
Flickering is the #1 complaint among the Ram owners who install LED bulbs or full aftermarket housings. The cause is almost always PWM (Pulse Width Modulation)- the ram's body control module rapidly pulses voltage to control brightness. Halogens ignore it. LEDs don't. Owner's report flickering that starts when shifting into drive and continues in cycles while driving.
Why It Happens
- LEDs react instantly to PWM signals
- Low-quality LED Drivers can't stabilize voltage
- CANBUS decoders alone don't fix it
Fix
The most reliable fix is changing the BCM setting using AlfaOBD to tell the truck it has HID/LED headlights. CBC features-LED high beam lamps present: Change to "YES" | High intensity discharge headlamps: Change to "YES" (if applicable) | High Beam Light Monitoring: Select the option to "Disable" or set stop flicker voltage check. And then cycle the ignition on and off for the changes to take effect.
____________________________________________________________________________________________________________
2. CANBUS "Bulb Out" Errors
Ram use a highly sensitive CANBUS system that expects the electrical load of a 55W halogen bulb. LED's typically draw 12-25W, which the truck interprets as a failure.
Symptoms
- Dashboard "bulb out" warnings
- Flickering at startup
- LED's that turn on/off randomly
Why It Happens
- Power draw mismatch between LED and OEM halogen
- Diagnostics pulses sent by the truck confuse LED drivers
- PWM dimming used for DRL's triggers instability
These issues are well documented across LED technical guides.
Fix
- Use OEM-Grade CANBUS decoders
- Choose LED's with Bult-in CANBUS drivers
- Avoid cheap Bulbs and housing with weak circuitry
_____________________________________________________________________________________________________________
3. DRL (Daytime Running Light) Malfunctions
On Many Ram models, the DRL and high beam share the same bulb. When the truck reduces voltage for DRL mode, many LEDs simply can't operate at 6-9 volts. It's a bummer, Ram can tow, but can't handle a AMP voltage. Anyways:
Common DRL Problems
- DRL's flicker
- DRL's don't turn on at all
- DRL's run at full brightness (dangerous for oncoming traffic)
Forums discussions confirm that low-voltage DRL circuits are universal headache for LED conversions.
Fix
- Use LEDs specifically designed to activate at low voltage
- Install voltage boosters or specialized DRL decoders
- If nothing works disable DRLs or switch to a full LED housing
_____________________________________________________________________________________________________________
4. Moisture Inside Aftermarket Headlight Housings
Moisture buildup is extremely common when installing aftermarket headlights on Ram trucks- especially when dust cap don't seal perfectly.
Why It Happens
- Loose dust caps
- Drilled holes for resistors/decoders
- Cheap headlights with poor venting or no venting at all.
Owners report moisture entering even from slightly loose caps.
Fix
- Ensure dust caps are fully seated
- Avoid drilling unless absolutely necessary
- Add silica packs inside housing (not a fan, but useful if not wanting to buy premium hi-quality headlights)
- Choose better headlight with OEM-style vents.
We love the functionality of the EVO LED Headlights for the ram due to the frost-free system built in. The technology used is for warming up the lens and inside of the housing to prevent frost built up, water and foggy conditions. Activated by flashing the high beams four times when temps drop below 41 degrees. Doing so keeps the moisture out. Something you don't see on cheaper pair of headlights.
___________________________________________________________________________________________________________
5. Wiring & TIPM/BCM Sensitivity
Did we mention how sensitive the Rams are? Ram trucks (especially years 2017 and up) use software-controlled headlight circuits. The TIPM/BCM monitors voltage, resistance, and current in real time.
Why This Matters
- Misidentifying wires can cause shorts
- Incorrect load can damage the TIPM
- Aftermarket LEDs may not match OEM wiring logic
Technical guides emphasize the importance of understanding Ram's wiring architecture before modifying anything.
Fix
- Use year-specific wiring diagrams
- Avoid tapping tino headlight circuits for accessories
- Use relay harnesses for high draw LEDs
_____________________________________________________________________________________________________________
Final Thoughts
The 2017+ Rams 1500, 2500 and 3500 are fantastic trucks- they haul things you need, big fun toys, a powerhouse for construction work, but their electrical systems weren't designed to boost your visibility naturally for nighttime when installing LEDs in mind. With the right components and setup, though, you can enjoy bright, sleek modern look without flickering, warnings or moisture issues, please stay calm and take it step by step on what to trouble shoot. Once you can do that, you can conquer all the nooks and quirks your ram has with ease.
Remember, not ALL headlights are made the same, each brand had different inputs, functions and even voltage draw. All cases don't draw down to the headlights; it can be something simple what was normally skipped.
Take Pride In Your Ride.
