2015-2020 Ford F150 2WD 0-3" Icon Stage 3 Suspension System w/ Tubular UCA

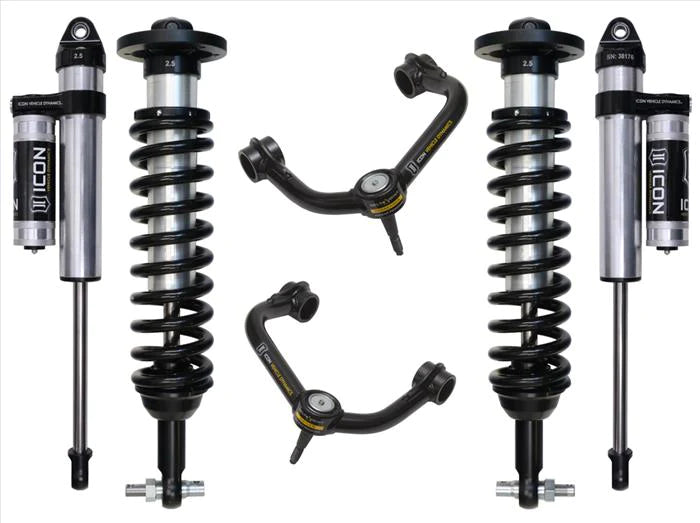

The Stage 3 system comes complete with vehicle-specific tuned 2.5” coil-over shocks boasting internal reservoirs for enhanced cooling, and ICON-engineered Eibach coil springs for a superior driving experience. You can also adjust the height from 0-3”, allowing you to fit larger, bolder wheel/tire combos. Tubular upper control arms give maximum strength and durability, as well as keeping the factory spec range intact with an increase in caster. The rear 2.5 Aluminum Series Piggyback shocks feature precisely tuned vehicle-specific valving for a balanced drive from front to rear. The 2.5" reservoir shocks deliver consistent damping and cooler temperatures even during heavy use.
Part number: K93093T
Suspension Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Unique valving developed for the lighter weight of the 2015-2020 F150
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-3" of lift height

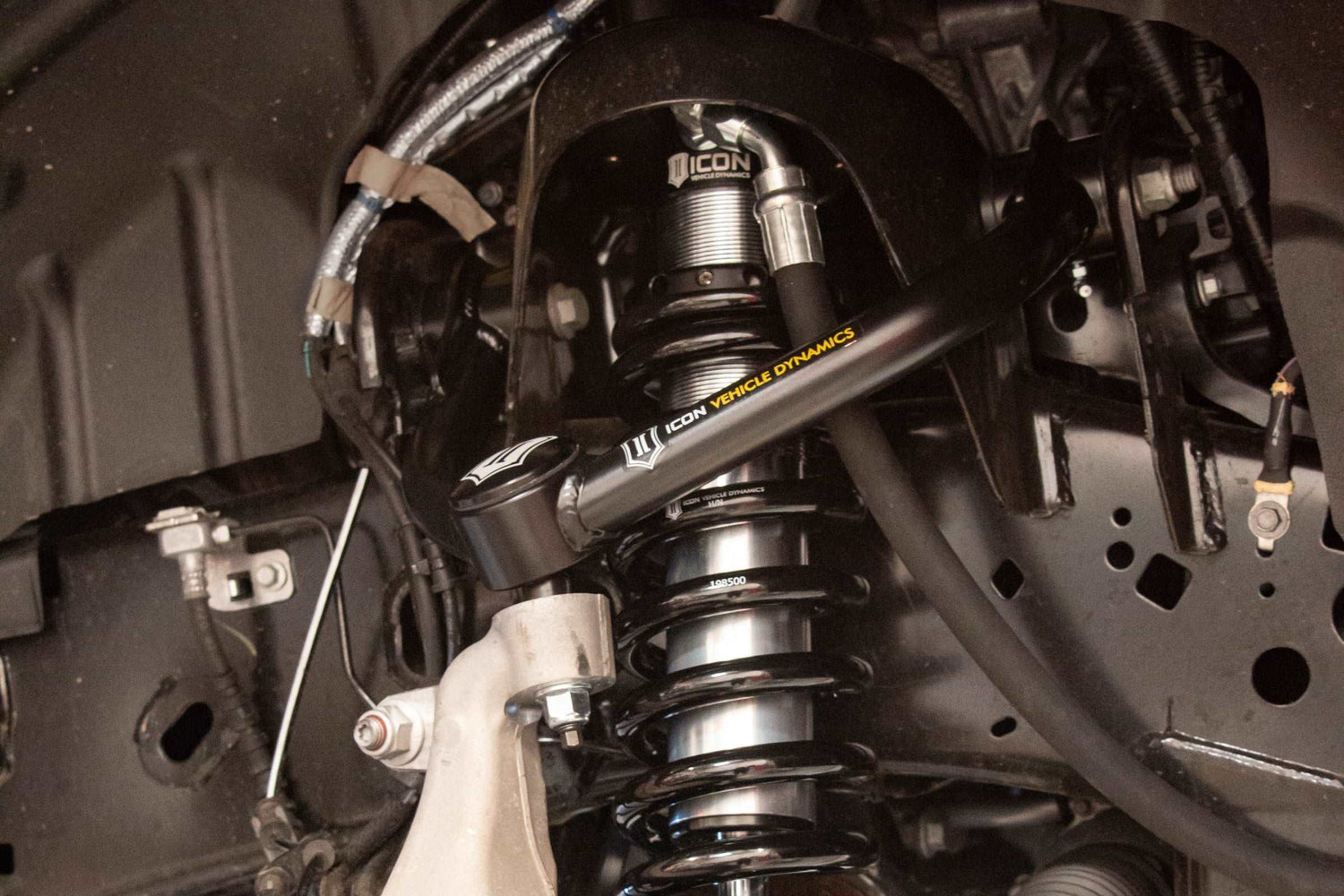

- Tubular upper control arms for added strength, durability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- High strength alloy CNC machined lower bar pin

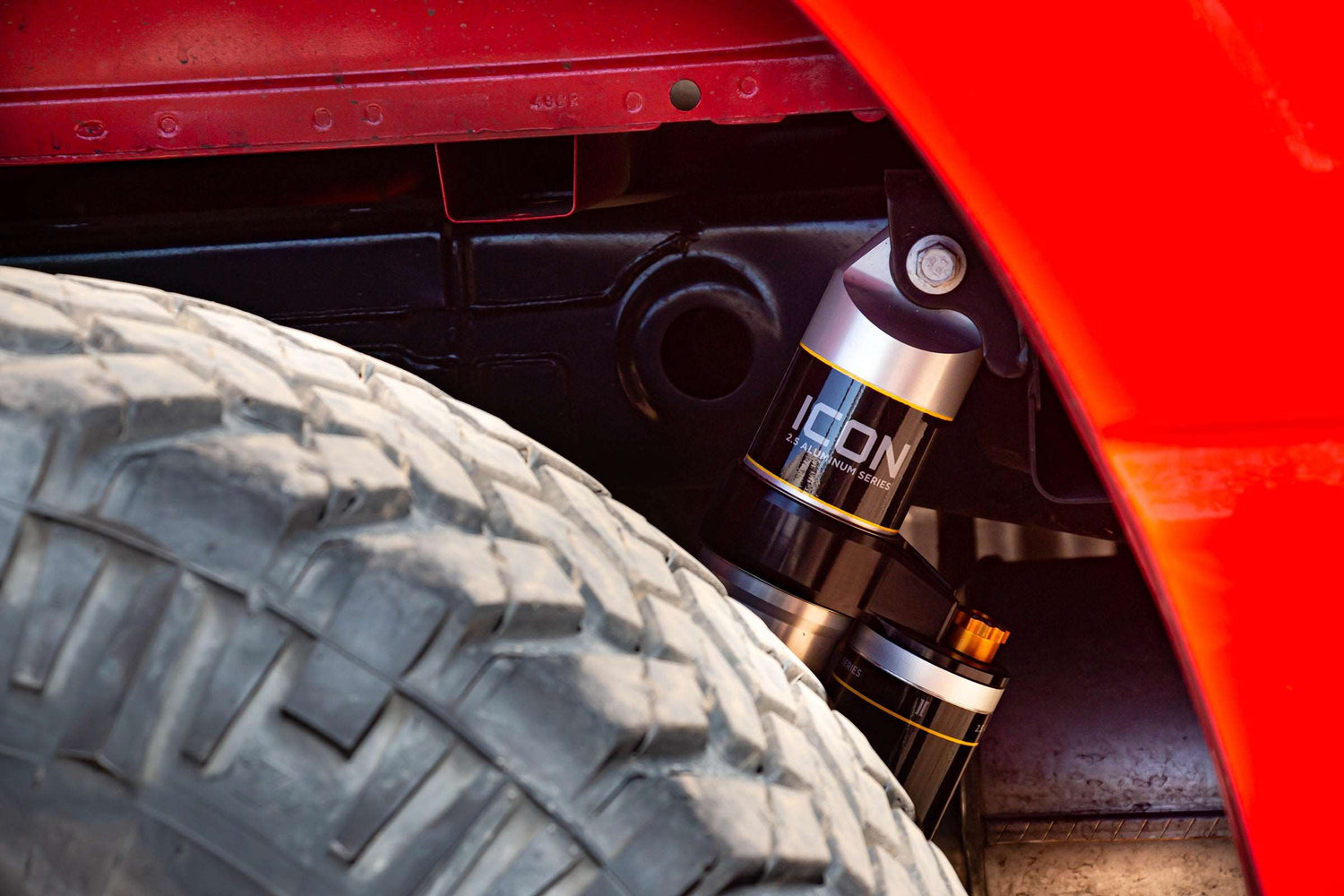

- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Bolt-on system - No cutting or welding necessary for install.
Recommendation Icon Wheels:
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Compatibilty:
- Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
- Only compatible with rear wheel drive (2WD/RWD) models.
- Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock.
- Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock.
ICON SYSTEM COMPONENTS:
- 91616 (QTY: 1) | 15-20 F150 2WD 0-3" 2.5 VS IR COILOVER KIT
- 98500DJ (QTY: 1) | 04-20 F150 TUBULAR UCA DJ KIT
- 97720P (QTY: 1) | 09-23 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR
