HXB 1 Banger LED Pods

Morimoto 1Banger LED Pods: HXB Combo Beam

Since 2008, Morimoto has set the bar for automotive lighting upgrades, and the HXB 1 Banger LED Pods keep that legacy alive. Designed and tested in the USA, these off-road LED pods deliver top-tier performance, durability, and style. They’re built to handle the toughest conditions while giving your ride a bold, next-level look. If you’re ready to upgrade your off-road game, the 1 Banger pods are the real deal.

1 Banger LED Pod Details

Form meets Function 1 Banger is compact, perfect solution for adding extra light where full-size pods work. It's awesome placements for: work sites, late night activities, enclosed trailers, and more.

Performance Every element of the 1banger is proprietary. Lucid shape was used to optimize performance around the most modern, lumen-dense LED's from Osram.

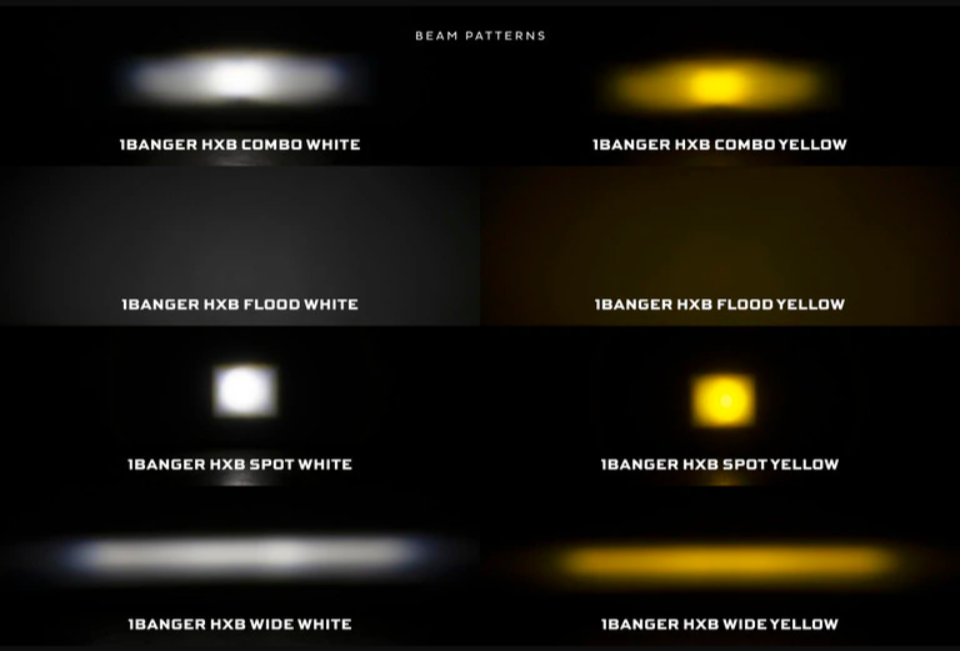

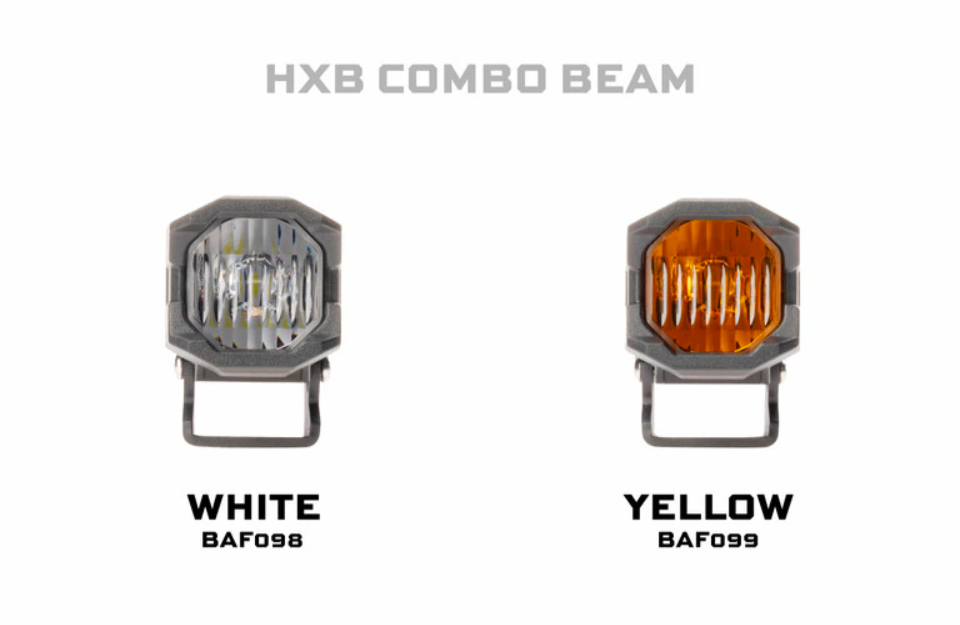

HXB Combo Beam Illuminates a clear path with medium range. Provides a blend of width and distance Illumination making every day driving in the middle of nowhere more exciting.

All Weather White output is ideal for all-round visibility. Te yellow is great for snow, fog, and rain.

Street Legality When aimed CORRECTLY, the combo beam pattern complies with SAE j581 standards for aux high beam. This is not compliant for on-raod use.

Pods Specs

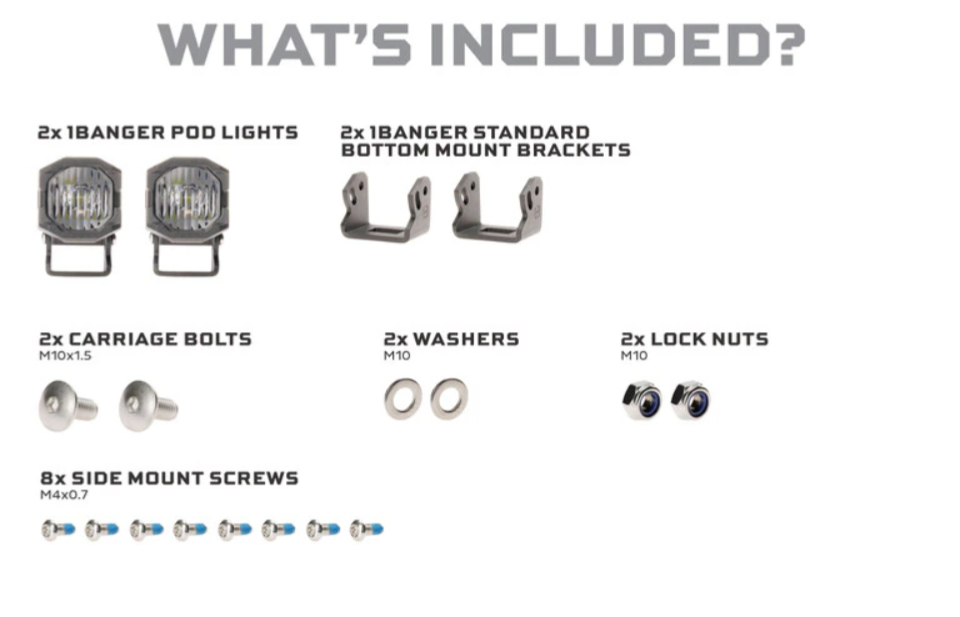

LED Pods: 2x (One Pair) Morimoto 1Banger HXB Combo Beam (White or Yellow)

Brackets: 2x Standard Bottom Mount Brackets

Hardware: 2x M10 Carriage Bolts, 2x M10 Washers, 2x M10 Lock Nuts, and 8x M4 Screws

Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Pigtails

Note: These specifications are per pod / each!

Intensity (White): 29,000 Cd (290 lux @ 10m)

Intensity (Yellow): 19,900 Cd (199 lux @ 10m)

Input: Integrated Deutsch DT 2-Pin

Power (stabilized): 14.5w

Current: 1.07A @ 13.5V DC

Peak Luminosity (raw): 1,000 lm

Dimensions: 48.8mm W, 50.9mm H, 59.6mm D

Color: 2700K (Yellow) or 5700K (White)

Light Source: 1x Osram HX Boost

Material: Makrolon LED PC (Lens), Powder coated Die Cast Aluminum (Housing)

Compatibility

Universal: With included standard bottom mount brackets
