Diff Cover | DANA M220

Differential Cover DANA M220 Gladiator (2020-2026)

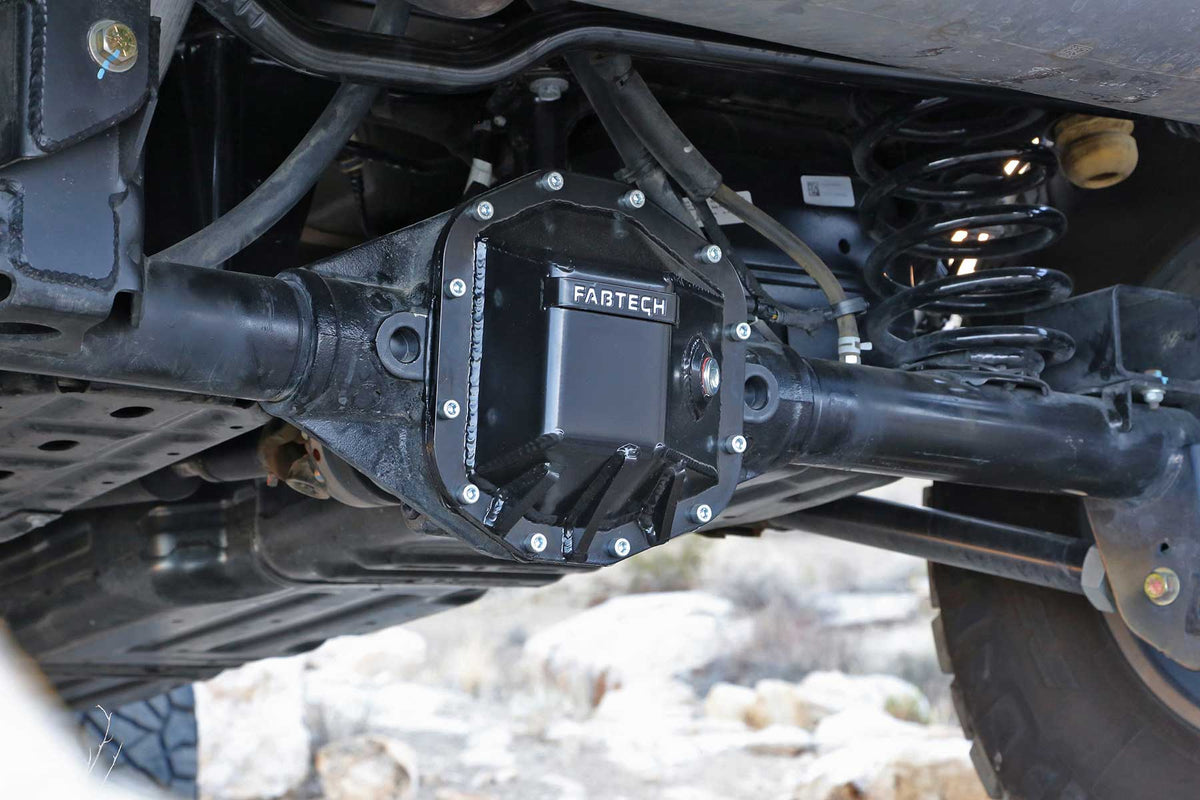

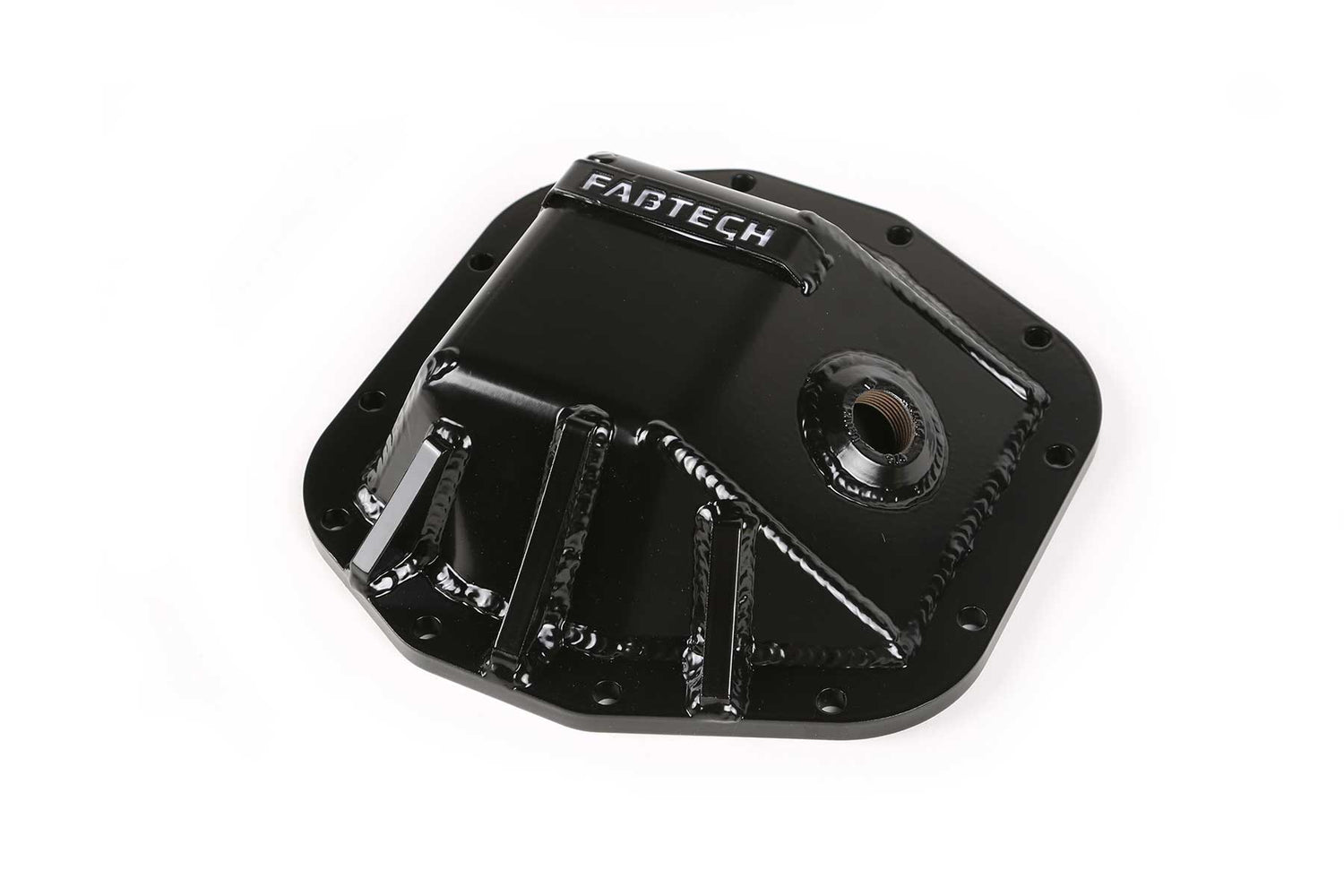

Fabtech's heavy-duty Differential Cover is constructed with 1/4-Inch-thick steel on the center section to ward off rock impacts that would typically penetrate the stock Jeep differential gear cover resulting in fluid loss.

 The ring portion of the cover is constructed with 3/8-Inch-thick steel and has three corner gussets. These gussets protect the lower mounting bolts against rocks. Additionally, they add strength to the ring preventing lip deformation when impacting rocks. This super stout Differential Cover is the perfect match to Fabtech's front Differential Cover Skid Plate.

FEATURES AND BENEFITS

• Center Section Constructed of 1/4-inch Thick Steel
• Double The Crush Strength Over Stock
• Increased Fluid Capacity for Optimum Gear Lubrication
• 3/8-inch Thick Steel Ring Eliminates Lip Bending
• Triple 3/8-inch Thick Steel Gussets Protect Mounting Bolts
• Superior Axle Housing Protection and Construction
• Limited Lifetime Warranty

TECH SPECS

Axle Model: Dana M220

Cover Bolts: 3

Color: Black

Material: Steel

Type: Smooth

Finish: Powder Coated

Carrier Main Cap Support/Girdie: No

Includes Drain, Filler Plug: No

Includes Gaskets: No

Includes Bolts/Studs: Yes

FITMENT

Jeep Gladiator and JT (2020-2026)

Jeep Wrangler and JL (2018-2026)

Ford Bronco (2021-2026)
