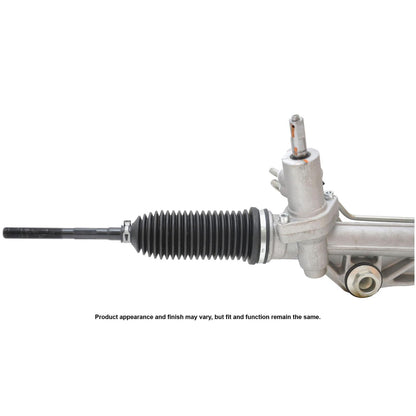

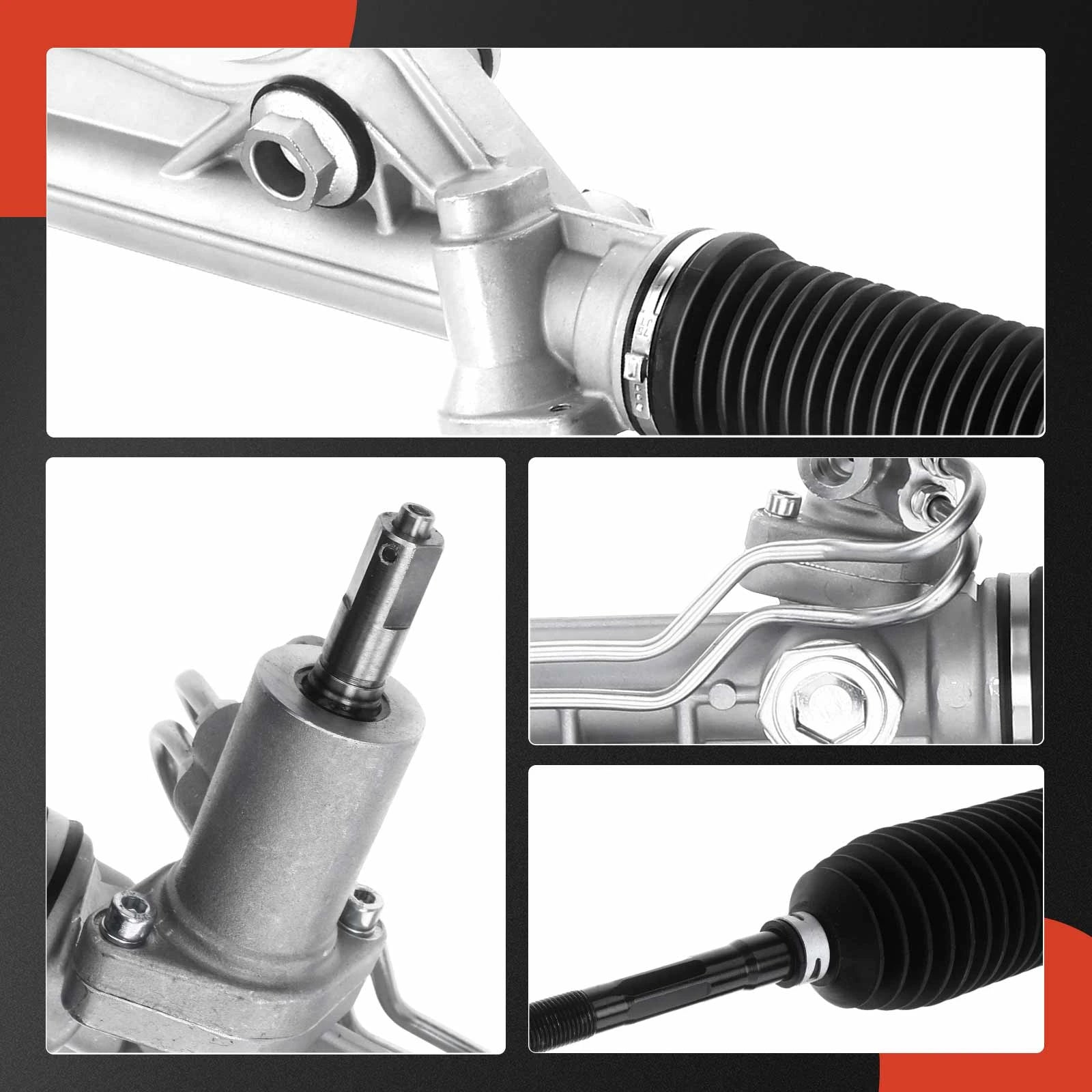

Power Steering Rack And Pinion Complete Unit Ford F-150 Series
Introducing the Premium Rack And Pinion Assembly for Ford vehicles. Premium-quality, brand-new parts are engineered to meet or exceed O.E.M. performance standards. With over 50 years of reverse-engineering expertise, we have identified and improved upon original design weaknesses. Tested to strict S.A.E. specifications, our units provide reliable, long-lasting performance.
- Environmentally-friendly coating applied to tie rods and lines to provide a clean appearance and prevent rust
- Performance testing ensures perfect fit, function and reliable performance
- Computerized spool valve balancing ensures exceptional steering feel

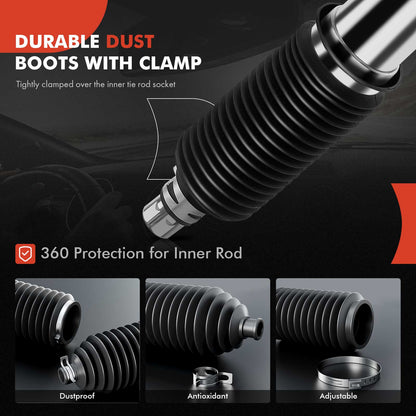

- Supplied with O.E.M. grade seals, O-rings and boots to provide optimal sealing performance and longevity
- Built to meet or exceed O.E.M. performance.
- Designed to match original specifications for a perfect fit and seamless integration.
- Has the same functionality and efficiency as the original parts.
- Polished components improve durability and ensure smooth operation.
- Long service life, worry-free purchase.
Specification:
- Warranty: 3 years
- Item Located: United States
- Unit of Measure: Each
- UPC: # 26686979010035750
- Hardware Included: Yes
- New Or Remanufactured: New
- Rack Length (in): 55-1/2 Inch
- Total Turns Lock To Lock: 3 Turn
- Input Shaft Diameter (in): 3/4 Inch
- Distance Between Mounting Holes (in): 16-15/16 Inch
- Input Shaft Length (in): 1-15/16 Inch
- Number Of Mounting Holes: 2
- Gasket Or Seal Included: Yes
- Outer Tie Rods Included: No
- Distance Between Mounting Holes (mm): 430mm
- Input Shaft Diameter (mm): 18mm
- Input Shaft Length (mm): 49mm
- Rack Length (mm): 1409mm
- Inner Tie Rods Included: Yes
- Hydraulic Or Electric: Hydraulic
- Replacement Part Numbers: 97-2038,AL1Z3504B,AL3Z3504B,AL1Z3504A,9L3Z3504A,AL3Z3504A,9L1Z3504A Can be cross reference.
Common Symptoms of a bad Rack and pinion:
• Stiffness in steering
• Vehicle pulls to one side
• Steering wanders side to side
• Lack of assist in one direction
• Leaks from seals or housing
• Clunking or popping noise
• Excessive, input shaft movement
• Binding or catching while turning
Need To Know Basis:
• Using a suitable pressure gauge, check to
ensure pump is capable of producing
adequate pressure.
• Check for collapsed hoses that could potentially
cause a restriction.
• To remove debris from the system, perform a
complete flush using O.E. recommended fluid.
• To ensure proper fluid supply to power steering
pump, inspect remote reservoir (if equipped) for
any blockages.
• Inspect condition and tension of power steering
pump drive belt. Replace if necessary.
• Follow the O.E. recommended bleeding
procedure.
• Replace o-rings used in the fluid ports and
variable steering port (if equipped).
• Transfer all mounting hardware if replacement
unit is not equipped with new hardware.
• Install an in-line filter on return side to eliminate
the possibility of restrictions caused by fluid
contamination.
• Perform an alignment.
Does the Rack and Pinion Assembly Fit My Ford?
2010 | F-150 FX2 | 5.4L VIN V |
2010 | F-150 FX2 | 4.6L VIN 8 |
2009-2010 | F-150 FX4 | 5.4L VIN V |
2010 | F-150 Harley Davidson | 5.4L VIN V |
2009-2010 | F-150 King Ranch, Lariat, Platinum | 5.4L VIN V |
2009-2010 | F-150 STX, XL, XLT | 4.6L VIN 8 |
2009-2010 | F-150 STX, XL, XLT | 4.6L VIN W |
2010 | F-150 Raptor | 5.4L VIN V |
2010 | F-150 Raptor | 6.2L VIN 6 |
