UCA Kit W/Stealth 3.5" Lift GMC 2500HD Sierra (2020-2024)

This high-quality GM 2500HD lift kit offers an increased ride height for enthusiasts looking to run a 35-Inch-tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look. This provides for increased strength both on and offroad. Fabtech sets the ball joint angle to allow for full travel without bind throughout the travel range. Fabtech's forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms. Fabtech offers their Stealth shocks with this suspension. They are a sealed monotube shock that has a Nitro-carb piston rod for corrosion resistance and resist rock chipping. They will provide a great highway ride with good offroad damping capacity.

FEATURES AND BENEFITS

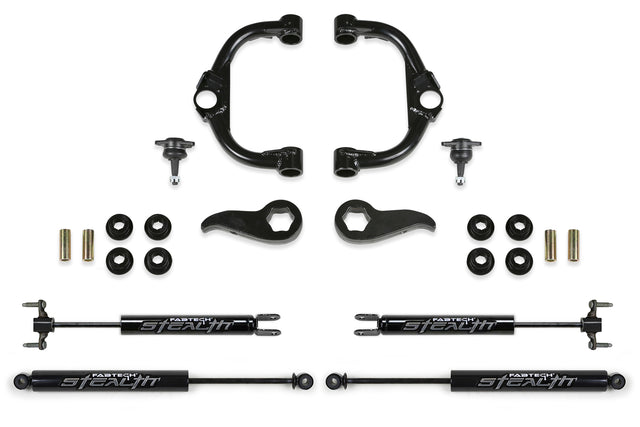

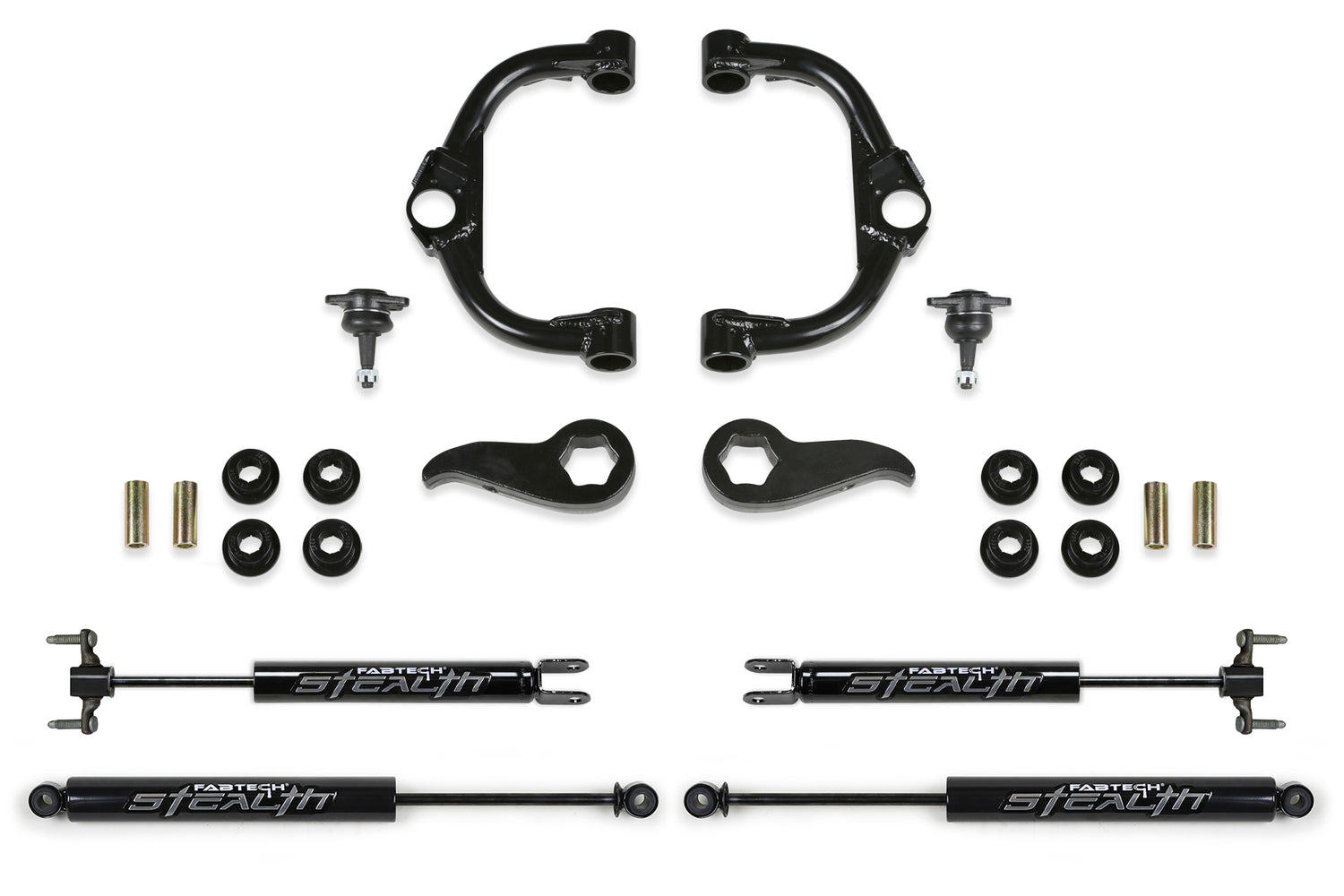

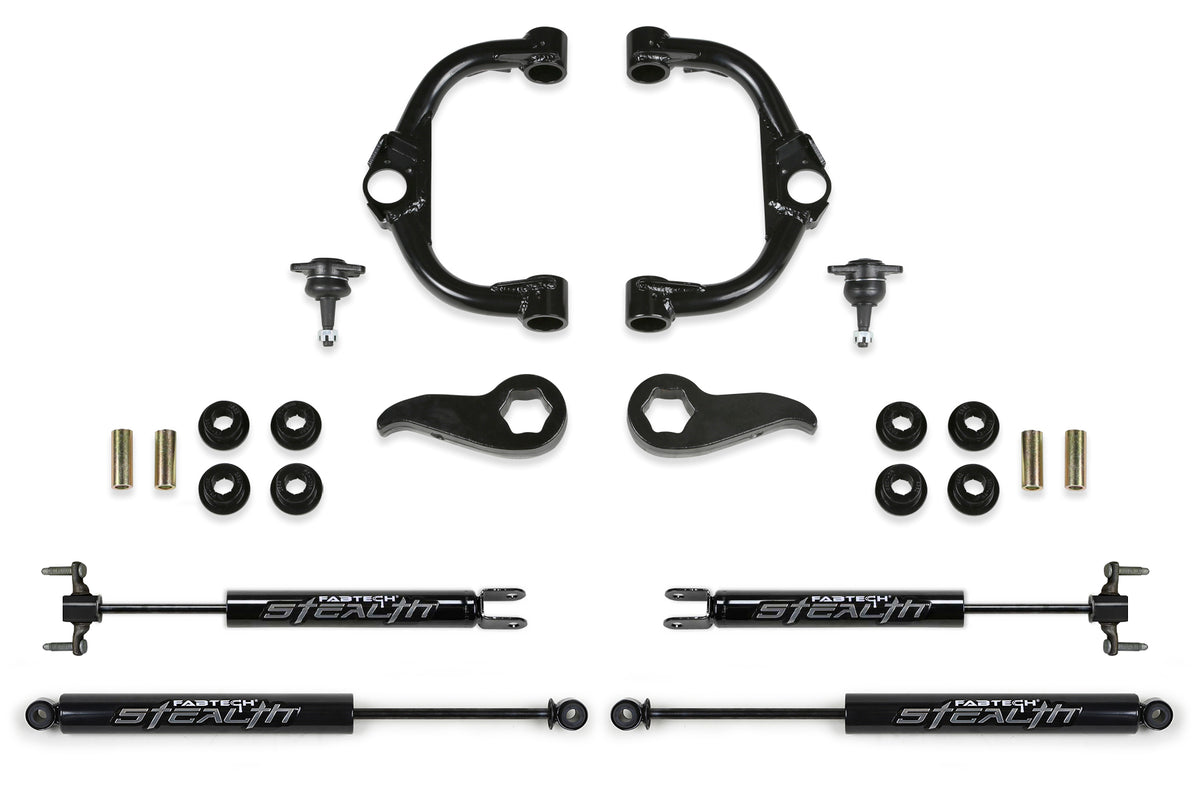

• Tubular steel upper control arms
• Additional 1 degree of castor built in
• High travel oversized ball joint
• Heavy-duty forged torsion bar keys
• Limited lifetime warranty

TECH SPECS

Lift Height: 3.5" Lift

Type: Torsion Bar Key

Maximum Tire Size: 35 x 12.50

Includes Shocks/ Struts: Yes

Minimum Wheel Diameter: 18

Wheel Backspacing (IN): 5.75

Wheel Offset (MM): 18

Color: Black

Material: Steel

Estimated Install Time: 2 Hours

FITMENT

Chevrolet Silverado 2500 HD Crew and Extended (2020-2024) 2WD & 4WD

GMC Sierra 2500 HD Crew and Double (2020-2024) 2WD & 4WD

OVERSIZED ITEM - Additional Freight Charges May Apply for 3rd Party Shipping.
