2 In. Leveling Kit | F-250

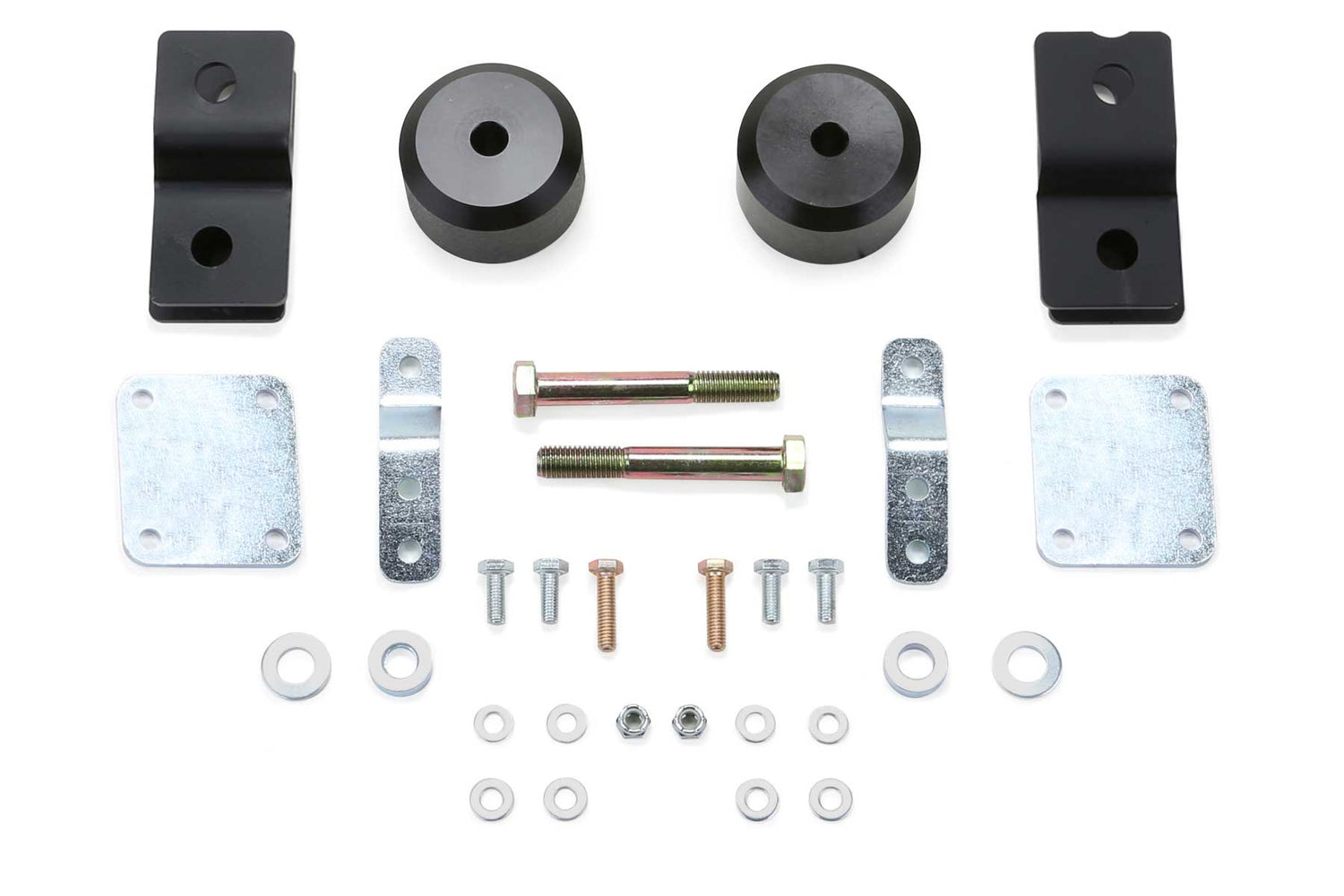

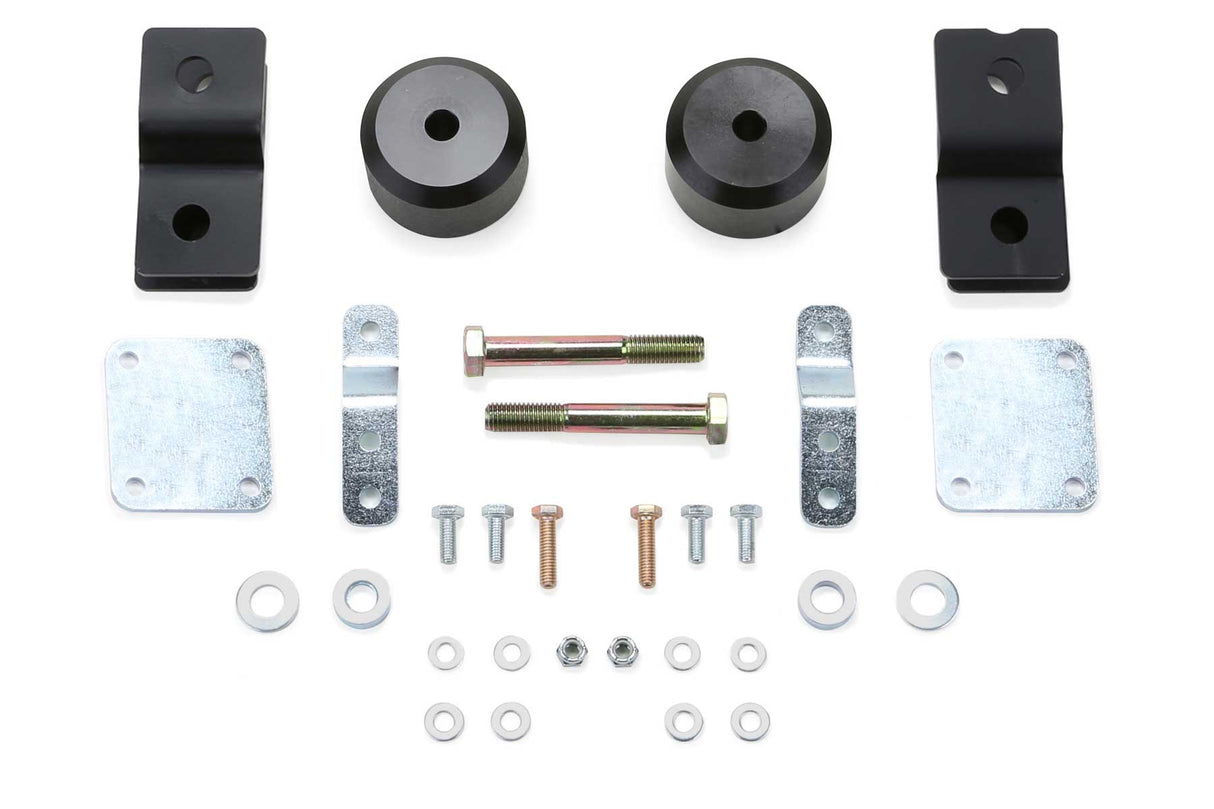

2 In. Leveling Suspension Kit Ford F-250 to F-550 Super Duty (2005-2016)

The Fabtech Leveling system provides a small amount of lift for the front of the vehicle. This will typically help to level the stance of the vehicle's ride height front to rear as compared to the nose down appearance from the factory. With the added ride height, it allows for the installation of larger tires and wheels for a more aggressive look.

The installation of the kit is typically very simple and can be done with basic hand tools. There is no modification of the vehicle required for installation and can be returned back to stock if needed. All Fabtech Leveling Kits have undergone extensive engineering to properly function without placing the ball joints and tie rods into bind. This is an important feature as some taller kits on the market create bind and can result in failure of those parts over time.

FEATURES AND BENEFITS

• Heavy-duty construction

• Made from aircraft grade billet aluminum
• Powder coated for maximum corrosion resistance
• Properly engineered to eliminate ball joint, tie rod and steering bind
• Limited Lifetime warranty

TECH SPECS

Lift Height: 2 Inch Lift

Type: Coil Spring Spacer

Maximum Tire Size: 33 x 12.00

Includes Shock/Struts: No

Minimum Wheel Diameter: 17

Wheel Backspacing (IN): 5.5

Wheel Offset (MM): -127

Color: Black

Material: Steel

Estimated Install Time (Hours): 2 Hr.

FITMENT

Ford F-250 Super Duty (2005-2016) | V10, V8, 4WD

Ford F-350 Super Duty (2005-2016) | V10. V8, 4WD

Ford F-450 Super Duty (2008-2013) | V10, V8, 4WD

Ford F-550 Super Duty (2008-2013) | V10, V8, 4WD

Installation Instructions
