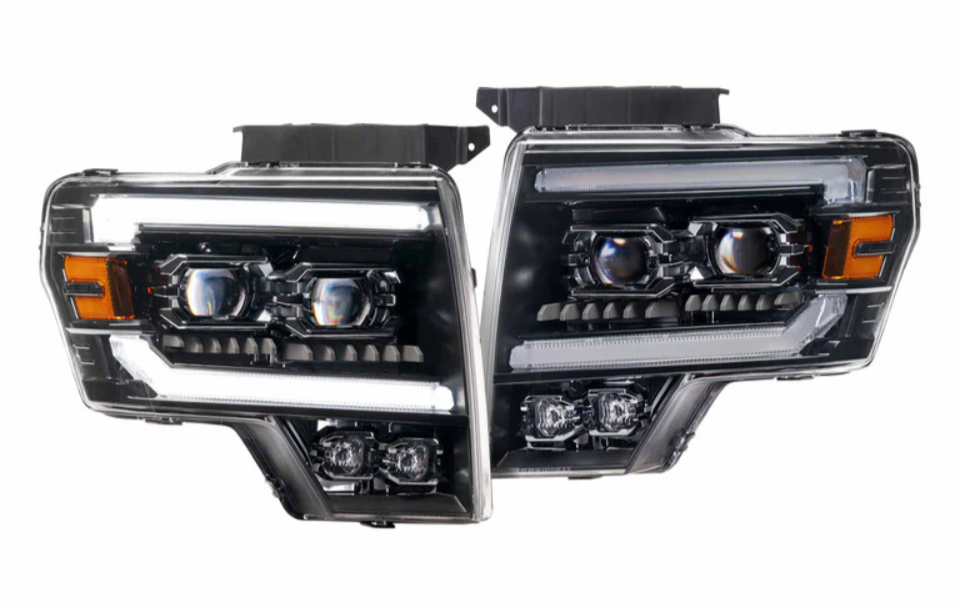

Ford SVT Raptor (10-14) Morimoto XB Evo LED Headlights

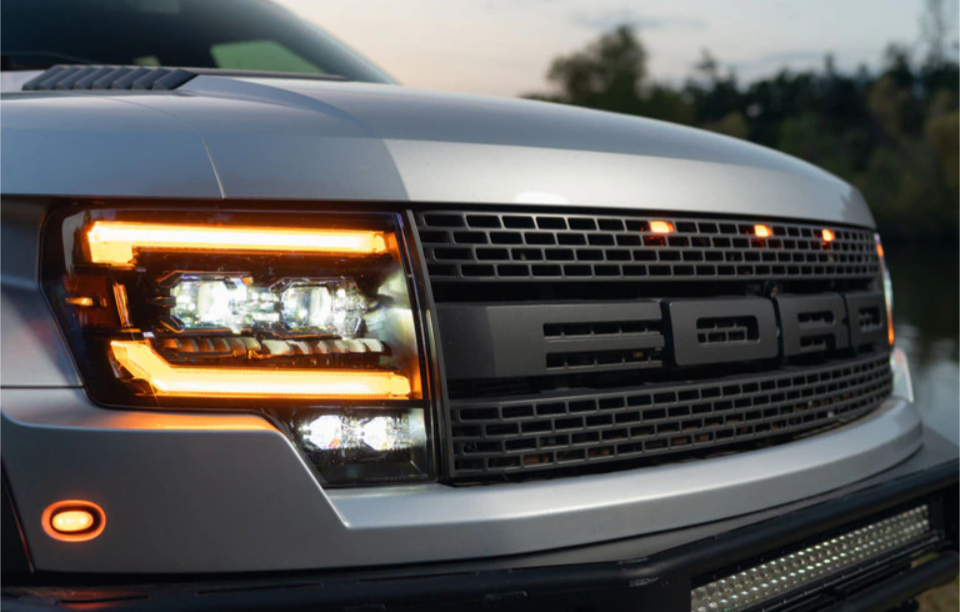

The XB EVO LED Headlights for SVT Raptor blend cutting-edge tech with sleek design, crafted for serious enthusiasts. Featuring a frost-free system, dynamic DRL optics, and a cool startup sequence, these headlights deliver top performance and style. Built with precision and quality, they elevate your ride while keeping you ahead of the curve.

XB EVO Headlight Details:

On The Road: The Morimoto XB Evo Headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA*. Their projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. *Note: Due to the separate adjuster on the auxiliary high beam pods, this feature is not compliant for on-road use.

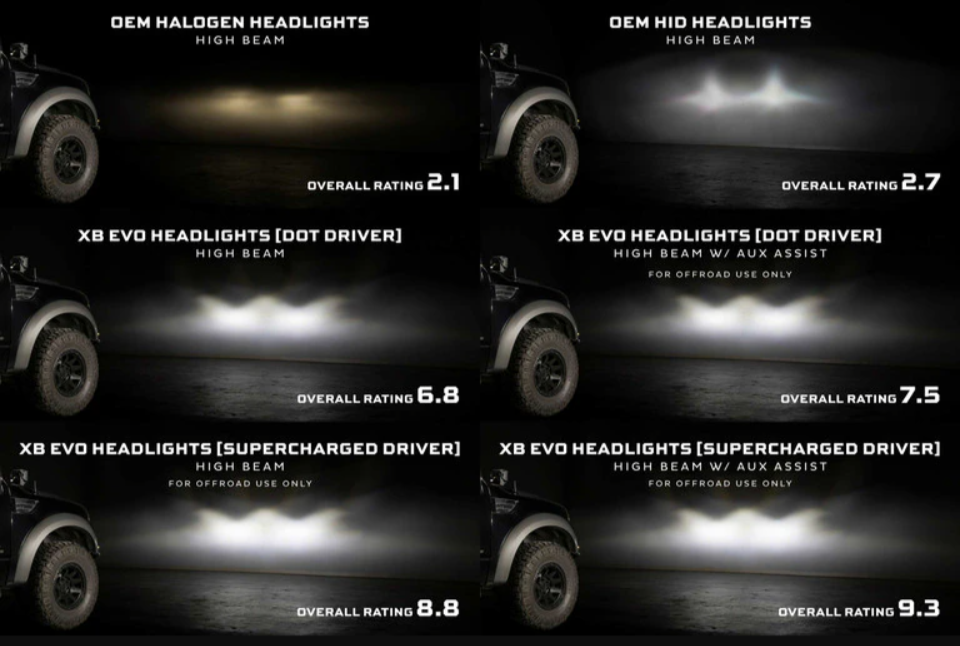

Off Road: Heck yes, you read that correctly. Out of the box, XB Evos are only producing a fraction of their potential intensity for compliance reasons. The optional Supercharged LED driver boosts both low and high beam intensity by 30-50% - all without sacrificing reliability or warranty. While the Supercharged drivers easily enable the XB Evo to outshine every other headlight for the F-150 on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity and therefore should not be used on public roads.

Frost-Free System: Patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. When the temperature drops below 5 degrees Celsius, the system is enabled to operate on your command by flashing the high beams four times. From there, it will automatically maintain temps within the headlight housing to mitigate frost buildup on the lens. A cold-climate game changer, this feature ensures the output of your XB Evo headlights will remain strong when you need it most.

Start-up Sequence: When starting your F-150, the optics will automatically illuminate in a multi-stage sequence before turning back off. Unlike every other feature baked into XB Evo headlights, this does absolutely nothing to improve performance.

OE Fit & Install: The XB Evo headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free installation. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging and then plug into the factory wire harness and then work without errors on the dash, nor flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches.

Product Specs:

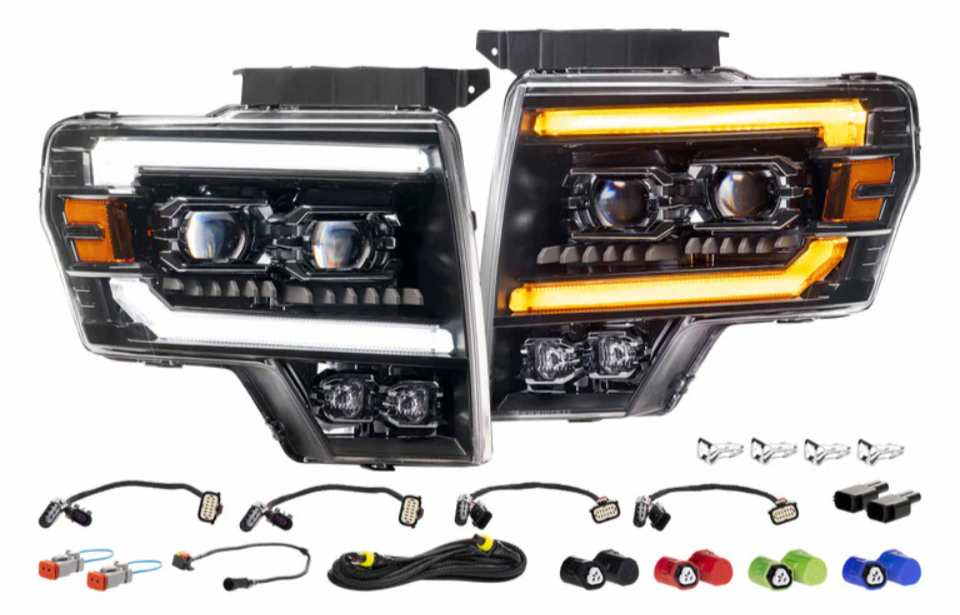

What's Included:

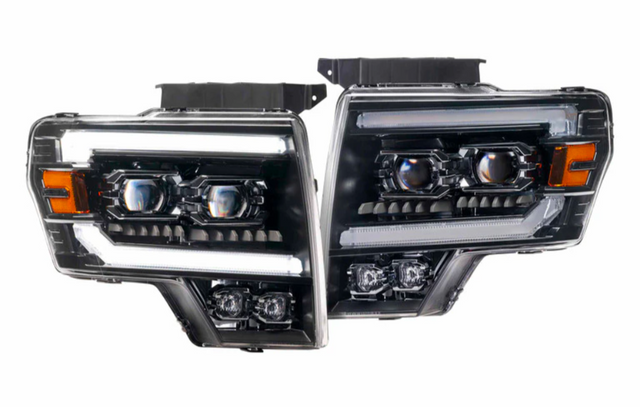

Headlights: One Pair 10-14 Ford SVT Raptor XB Evo (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

Accessories: 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x High Beam Keys, 4x Mounting Clips, 2x Side Marker Connector Caps, Fuse Tap Hardware

Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings

Warranty: 5 Years

Tech Specs:

• Traffic Pattern: LHD / Right Hand Traffic Only

• Output (Standard Drivers): DOT / FVMSS108 Compliant (LB2V and UB2)

• Output (Supercharged Drivers): +30-50% (non-compliant)

• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

• High Beam Assist: 2x Morimoto 1Banger NCS Combo Beam*

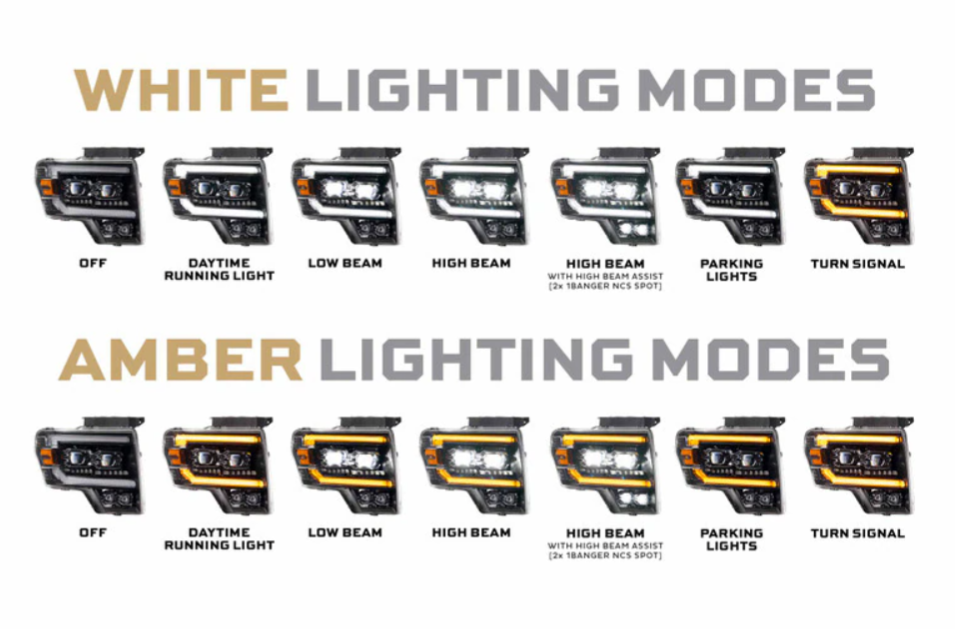

• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

• Turn Signal Modes: Sequential or Fade Off (Configurable)

• DRL Colors: White or Amber (Configurable)

• DRL/Signal Optics: Glass-like 3D Optics

• Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

• Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

• Side marker: Amber side reflex reflector (DOT compliant)

• Wiring: Adapters Included for OEM Halogen and OEM HID inputs

• Lens Details: Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark)

Compatibility:

Ford SVT Raptor: 2010--2014 (factory halogen & factory HID/xenon equipped models)

Supercharged Drivers: LF2-DRVSC12 (Optional, sold separately)

Replaces Ford Part #: FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB

Note: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
