Turbo Kit for LS1 LS2 LS6 Engine w/ BOV Intercooler Wastegate Air Filter 15PCS
Boost your LS1, LS2, or LS6 truck's horsepower up to 420 with the new Turbo Kit! Affordable and complete with 15 pieces including a wastegate, this kit has everything you need for a powerful upgrade. Drive with confidence and maximize your ride's potential.
Product Specific

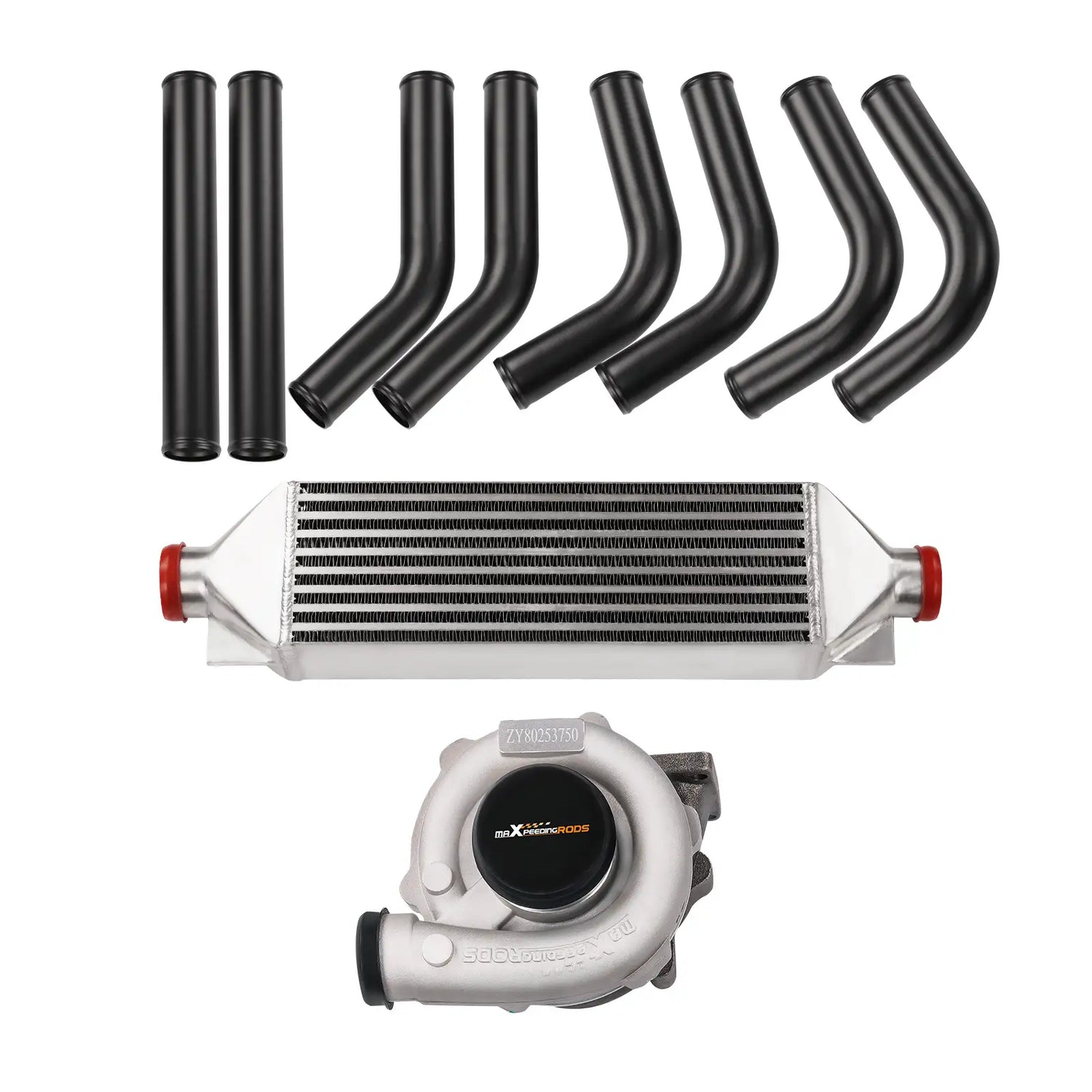

1 x Turbocharger
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (pipe) Flange: V-Band Flange
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Thrust Bearings: 270 Degrees
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm
Turbine exhaust outlet: 79mm
Turbine exhaust inlet:44.7mm(length)/85.8mm(width)
Horsepower: Up to 420 HP
Condition: New
Package Size:29x 27x 24 cm
Package Weight: 9160g
1 x Intercooler
Large design cools down the turbocharged air efficiently
1 x Intercooler piping kit:
[16] stainless steel worm gear clamps
[2] 2.5'' 90-degree silicone couplers
[6] 2.5'' straight silicone couplers
[2] 90 degree 2.5'' bends
[2] 60 degree 2.5'' bends
[2] 45 degree 2.5'' bends
[2] straight 2.5'' pipes

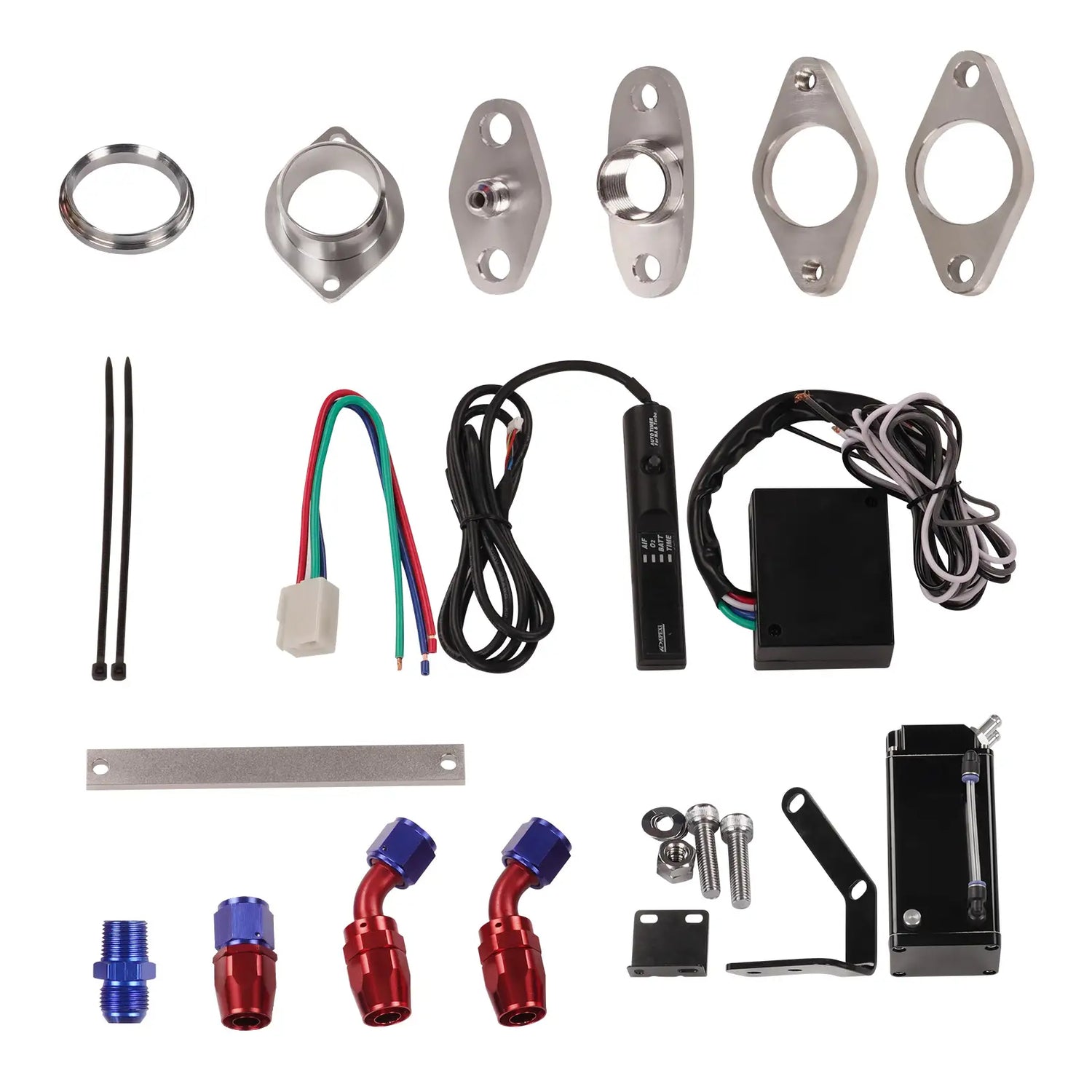

1 x Turbo Oil Kit
high temperature 550psi oil return line
Premium gaskets & hardware for the turbocharger

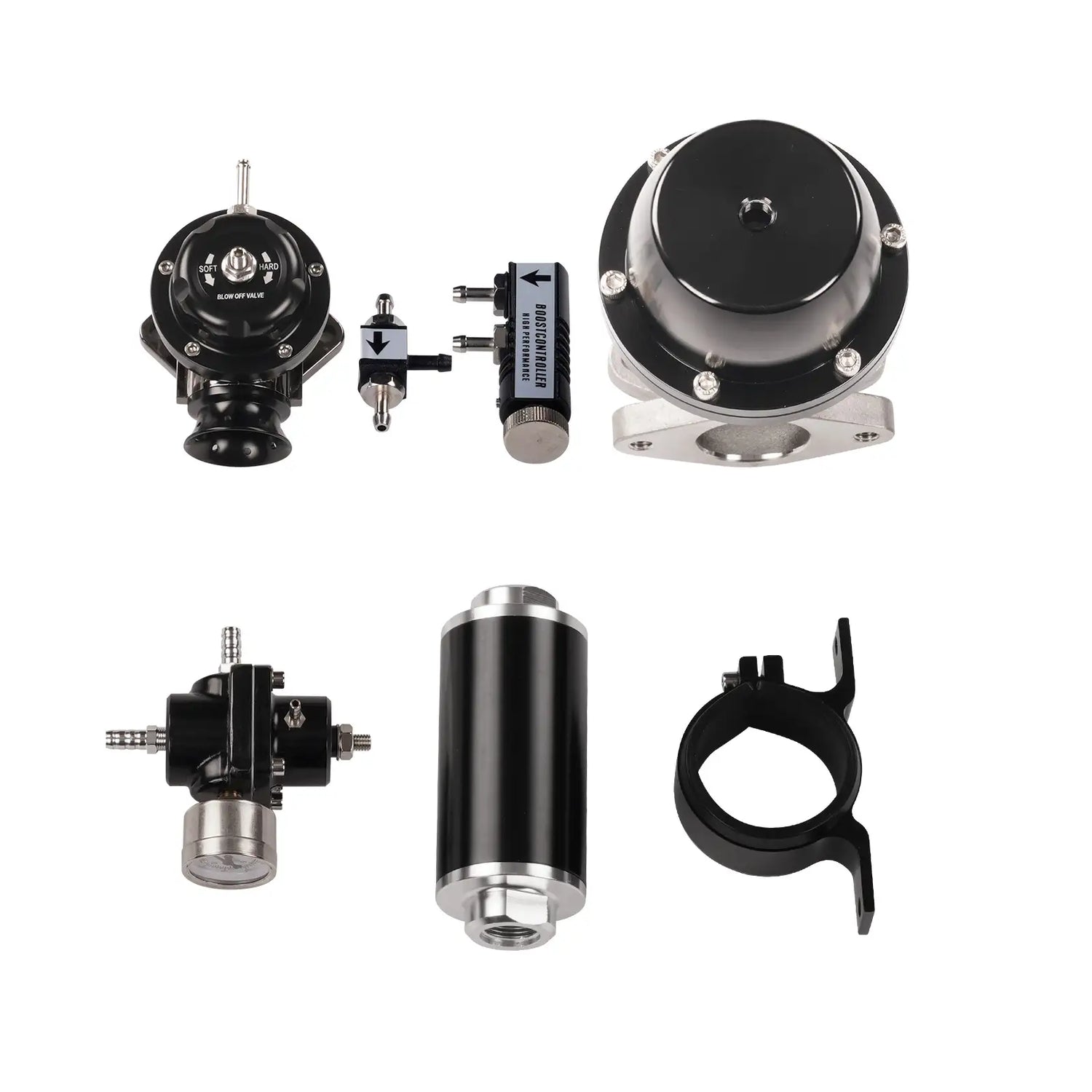

1 x Boost Controller Kit
Can be setup to adjust boost PSI on the fly
Can be adjusted for any PSI level desired
1 x Blow Off Valve Kit
Quality design will not leak under high boost conditions
1 x Wastegate
External style
Strong construction
Keeps the heat where it belongs
1 x Battery Relocation Kit
Full aluminum construction
1 x Slimline Cooling Fan
1.25" thick outside perimeter
2.50" thick inside perimeter
1 x Electronic Turbo Timer
Ensures a proper cool down for your turbocharged car every time
1 x Fuel Pressure Regulator and Filter Kit
Fully adjustable
-6AN billet aluminum inline filter
1 x Stainless Crossover
Easy v-band flange design
Polished finish
1 x Oil Catch Can
Show like high quality polish
Includes complete install kit
Flanges can be installed at user discretion
1 x Heatwrap
50' ft roll in length
1.00" wide roll

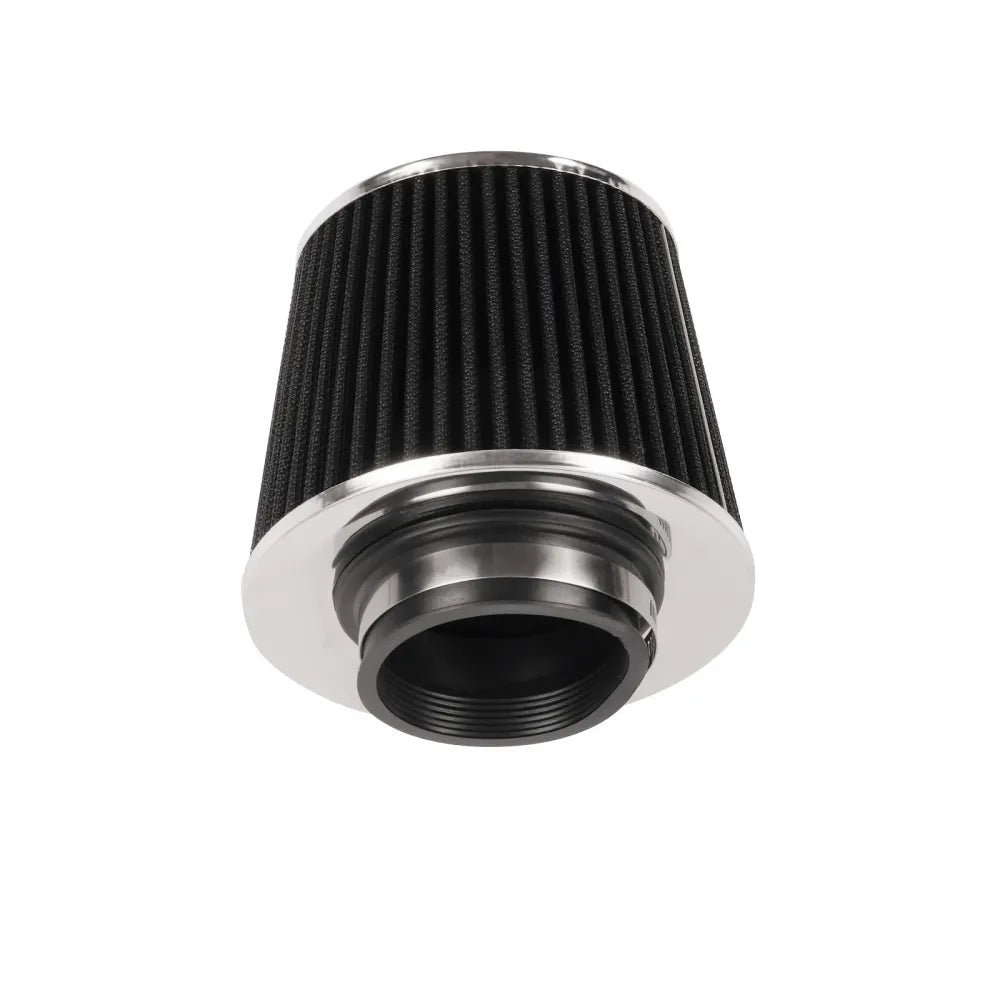

1 x Air Filter
4" Cone High flow Washable
Protects turbo units and engine

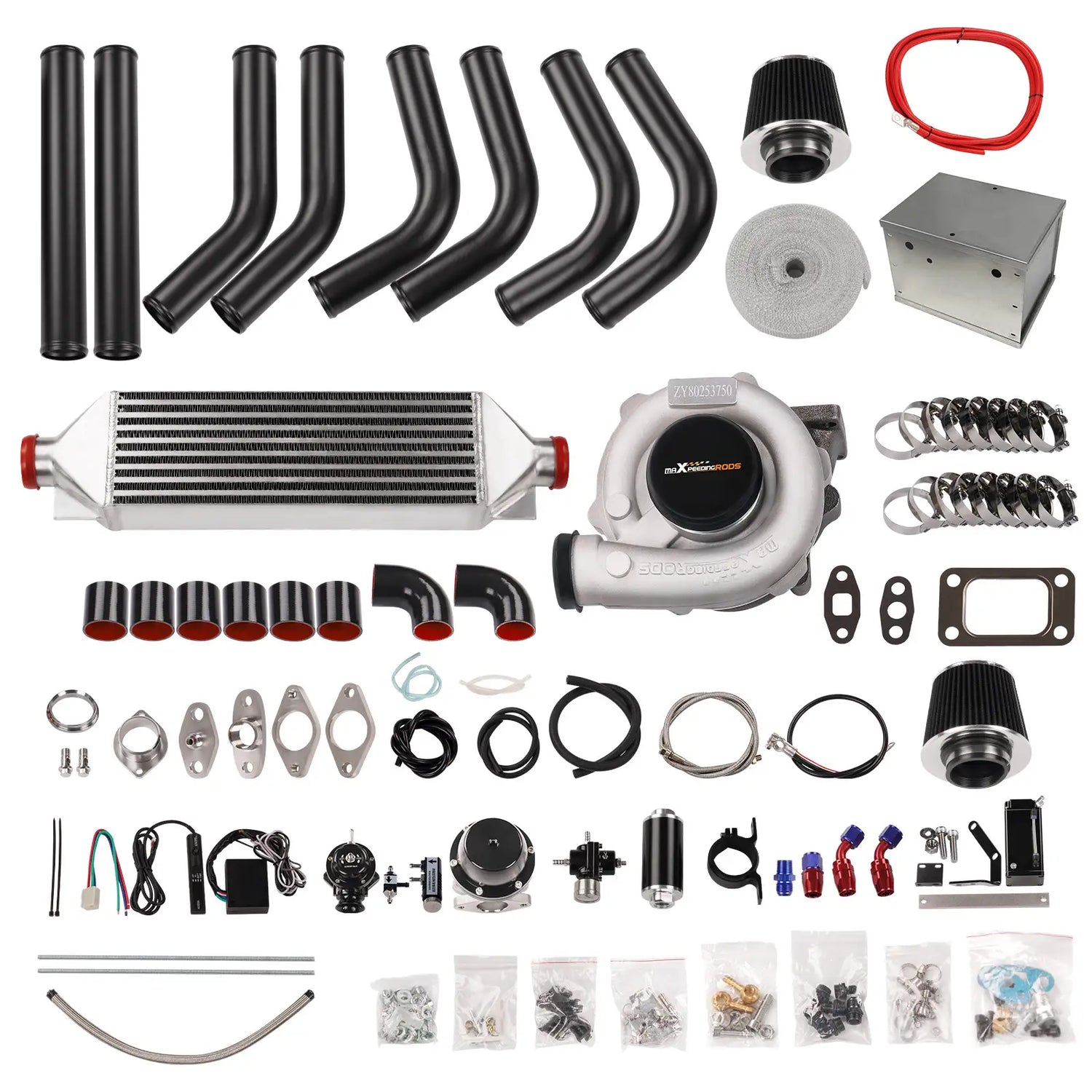

TURBO KIT BOX CONTENTS:
Turbocharger- Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns. With V band Flange. Maximize to 420 HP.
Intercooler- Large design cools down the turbocharged air efficiently.
Intercooler piping kit
Turbo oil
Boost controller
Blow off valve
Wastegate
Battery relocation
Slimline cooling fan
Electric turbo timer
Fuel pressure regulator and filter
Oil catch can
Heat wrap
Stainless Crossover
Air filter
Note
* Need modifications - Professionals ONLY
FITMENT:
For 4.5-6L Pickup
For LS1 LS2 LS6 engine
