Morimoto 4Banger LED Fog Lights: Ford F-150 (09-14)

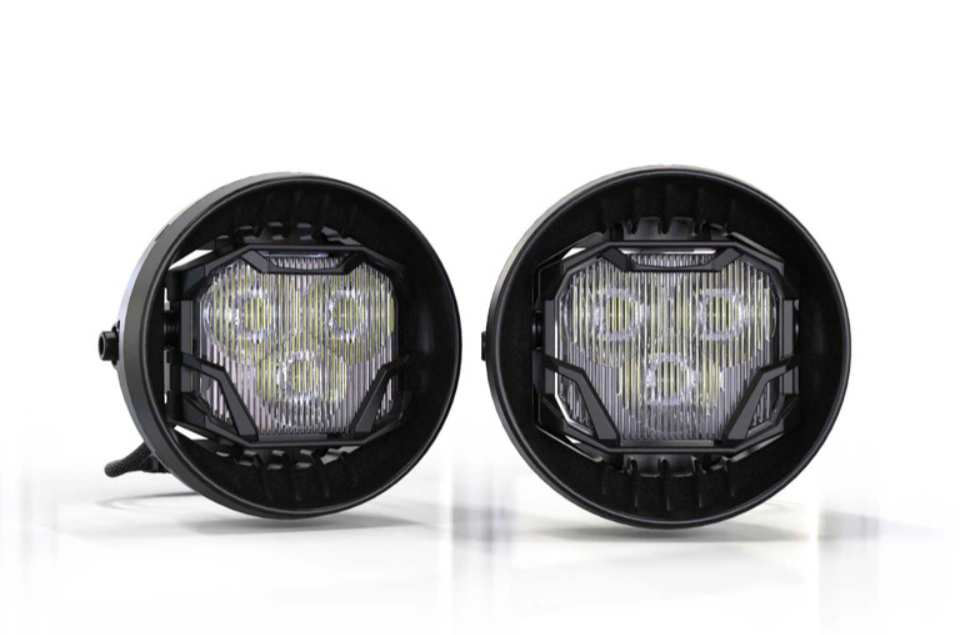

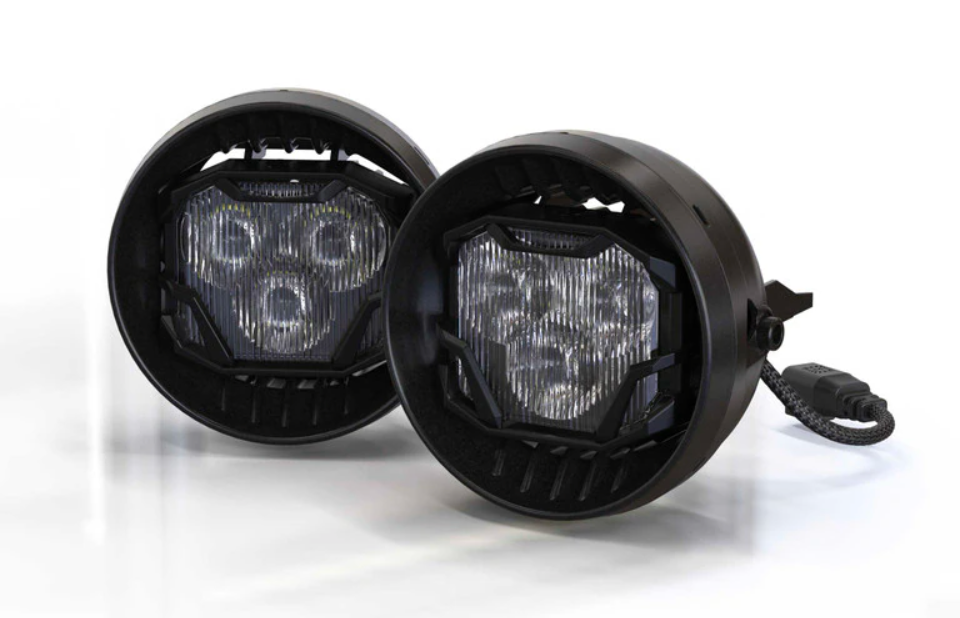

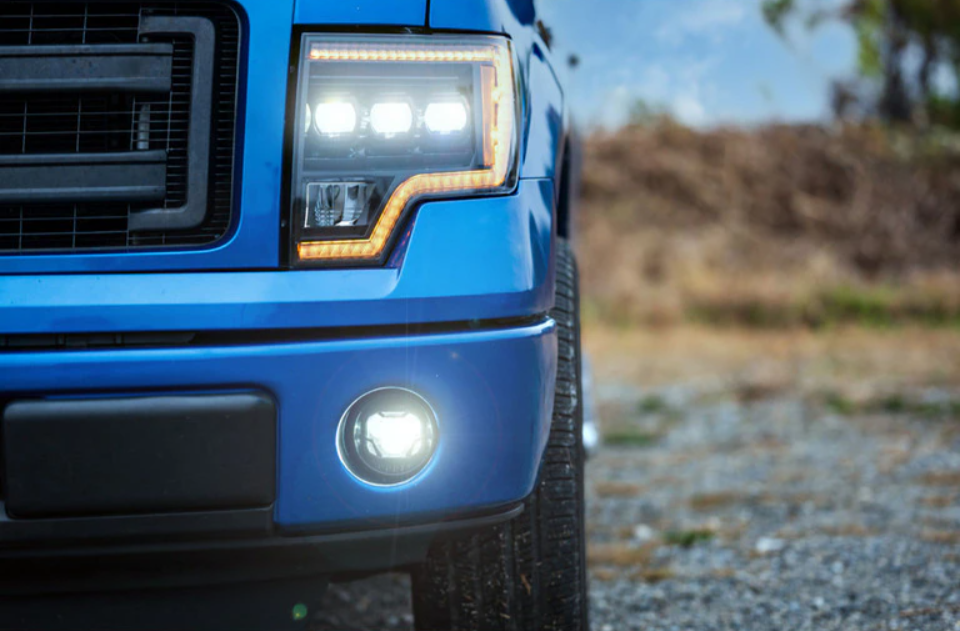

The Morimoto 4Banger LED Fog Lights for F-150 deliver serious illumination without the awkward bulk of traditional LED pods. With their compact design, these lights fit perfectly and look factory installed. Developed through hundreds of hours of hands-on engineering and multiple prototypes, they're the ultimate fog light solution for your truck. Easy to install, fully adjustable, and featuring a wide beam pattern that performs in any weather condition. Your nighttime drives just got a major upgrade.

4 Banger LED Details

SAE Compliant: Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light.

Easy Setup Design: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or it's wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness.

Fully Adjustable: Power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.

Air Cooled:  Incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.

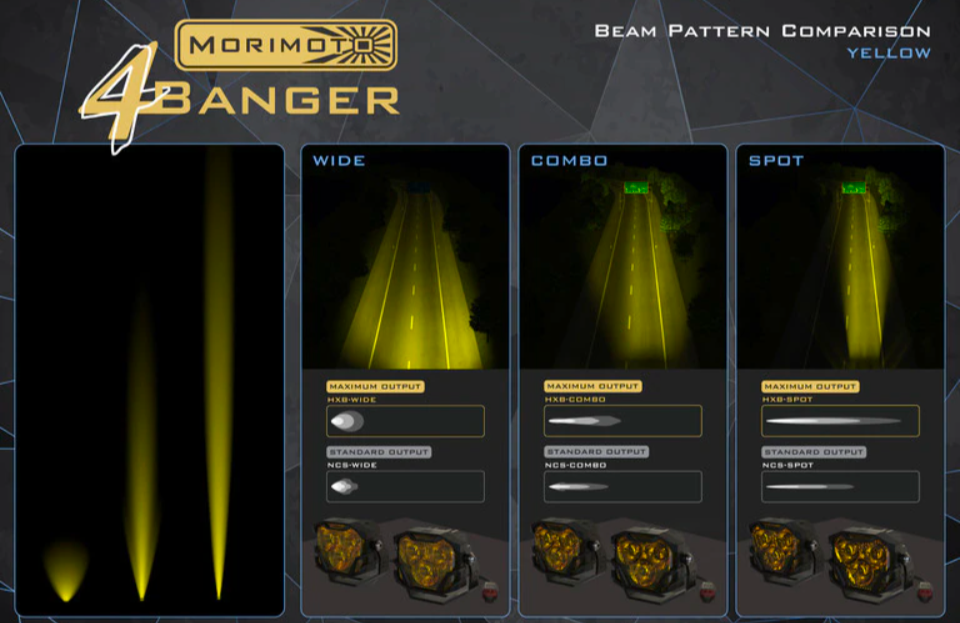

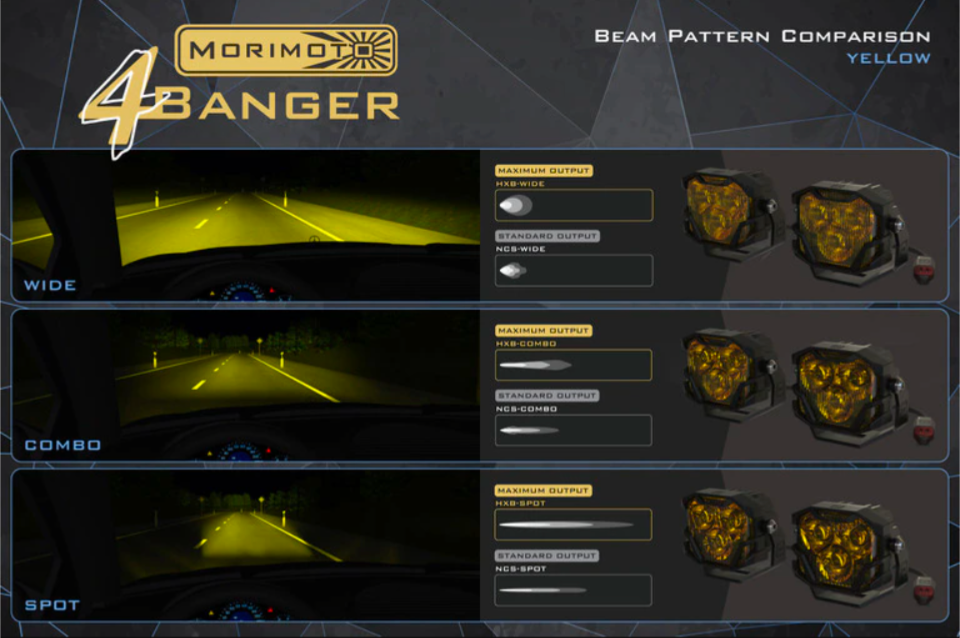

All Weather: For those who desire optimal output in rain, snow, or fog --the Yellow-output version will slay in sour weather. For HXB Spot and Combo models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

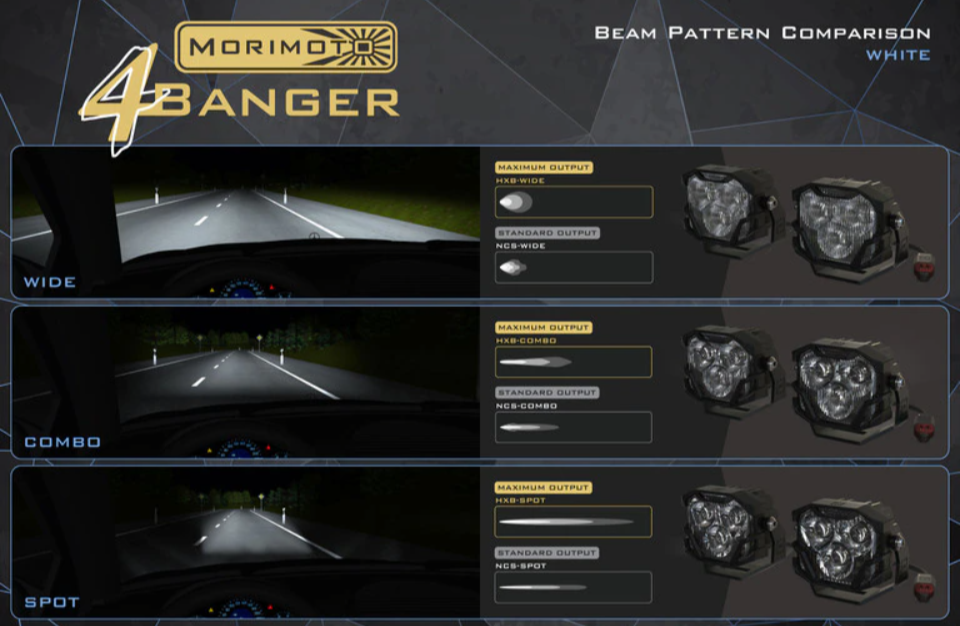

HXB Wide Beam (option): Offers an extremely wide beam pattern backed with powerful Osram HX Boost LEDs, making these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Cal coast ITL).

NCS Wide Beam (option): The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W). Offers the same super wide beam pattern backed with LEDs from Nichia.

4Banger Specs

What's Included

Fog Light Brackets: 2x (One Pair) BAF020 Brackets

LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)

Hardware: Complete Pack (Stainless Steel)

Wiring: Plug N Play Connection Kit

Compatibility

FORD EXPEDITION: 2007-2015

FORD F-150: 2004-2006 (with round fogs), 2007-2010 (Req. 1x OEM BL3Z15266B Mounting Bracket), 2011-2014

FORD RANGER: 2008-2011

REPLACES FORD PART #: AL1Z-15200-BCP, BL3Z-15200-ACP

Tech Specs

Note: These specifications are per pod / each!

Intensity:

NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

Input Voltage: 9-18V DC

Power (stabilized): 15.6w (NCS) 42w (HXB)

Current: 1.5A (NCS) or 3.2A (HXB)

Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)

Dimensions: 82mm W, 67mm H, 60mm D

Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))

Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

Input: Proprietary Over molded Deutsch DT 2-Pin

Material: Makrolon LED PC (Lens), Powder coated Die Cast Aluminum (Housing)
