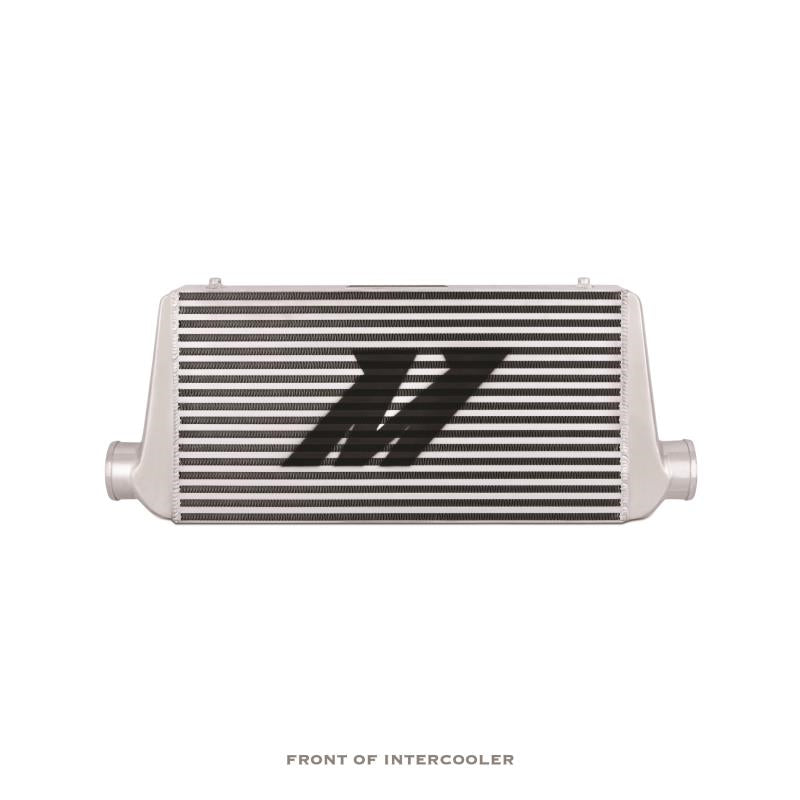

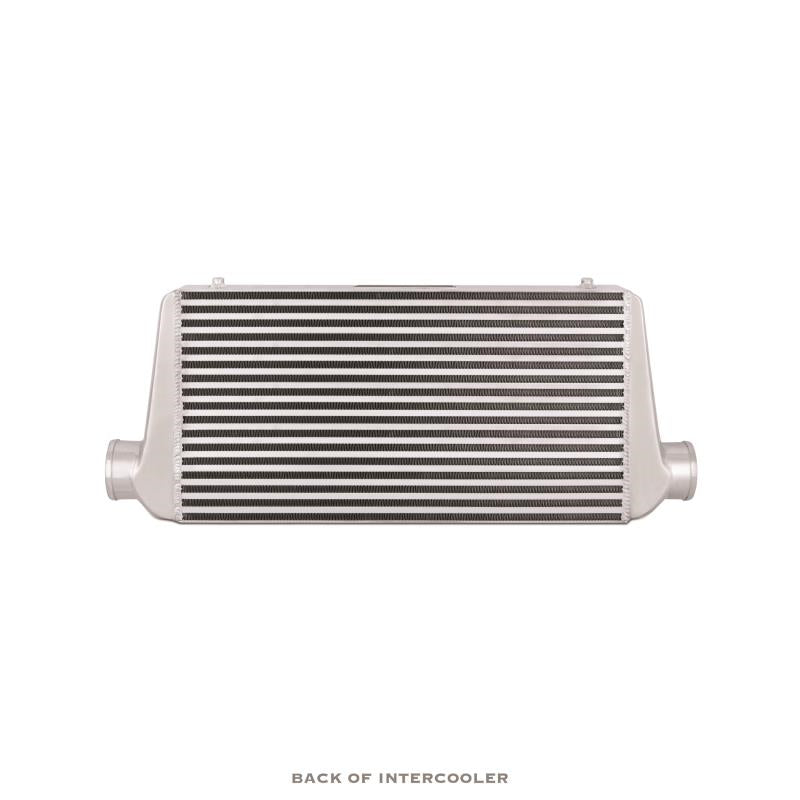

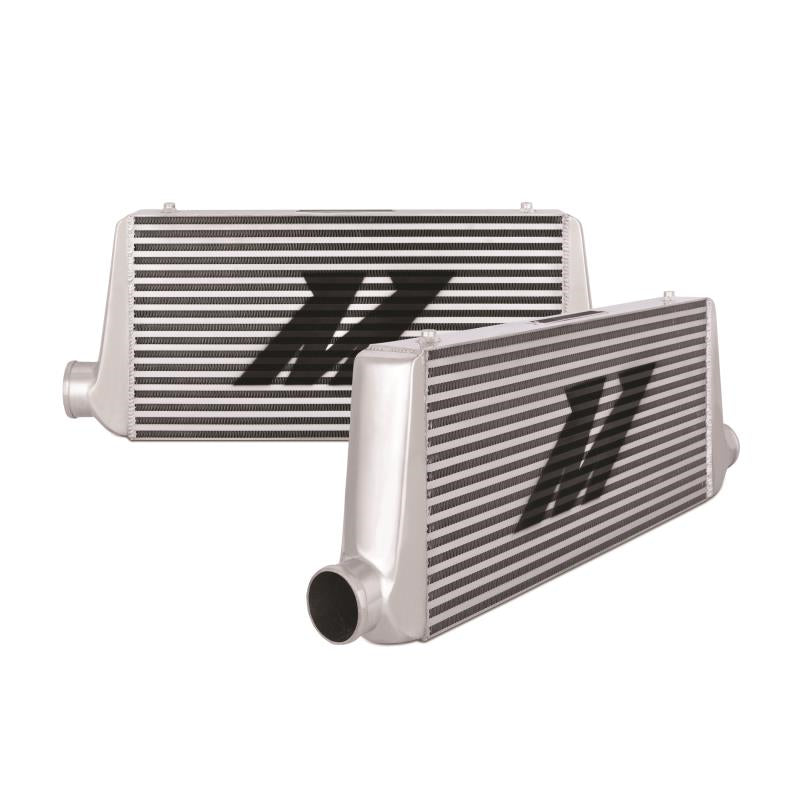

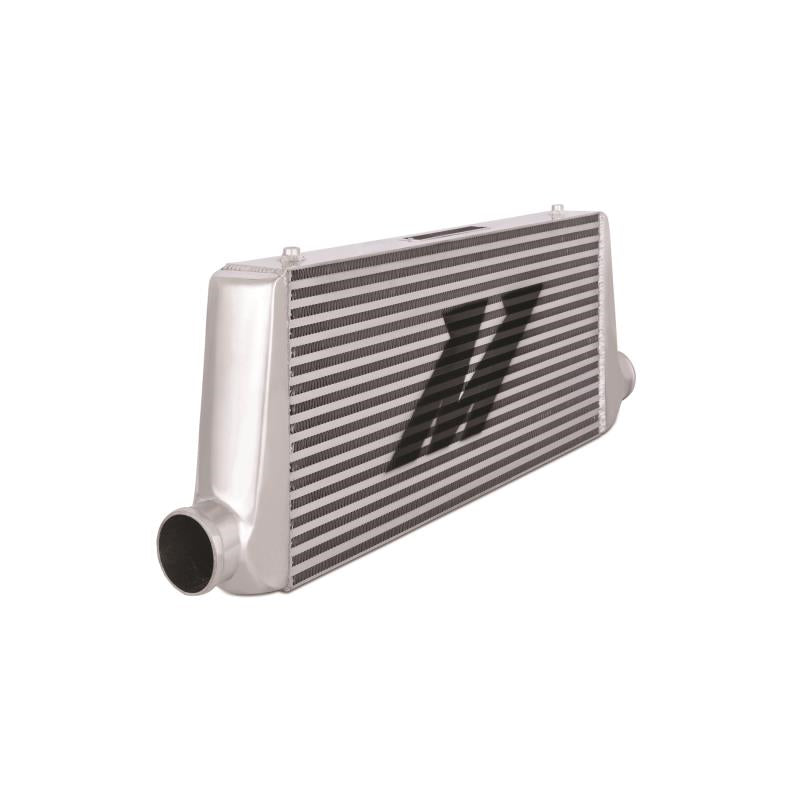

Intercooler R-Line Universal

Get the boost your ride deserves with the Mishimoto R-Line intercooler. Made from 6061 aircraft-quality aluminum, it’s built tough to handle supercharged and turbocharged engines. Its precision TIG welding ensures a tight, durable fit while efficiently lowering induction air temperatures to improve engine power. This front-mount intercooler delivers the perfect cooling capacity to safely increase horsepower and give you that extra edge on the road.

KEY FEATURES

• Durable bar-and plate core provides superior heat transfer while effectively reducing AITs
• Robust, one-piece cast aluminum end tanks withstand high boost pressures
• Massive 4-in thick core and 3-in inlet/outlet provides optimal flow and volume for high horsepower vehicles
• Mishimoto Lifetime Warranty

TECH SPECIFIECATIONS

Maximum Recommended Boost Pressure (PSI) 32

Maximum Recommended Horsepower (HP) 1000

Flow Rate 1250 Cubic Feet Per Minute

Type Air to Air

Overall Length (IN) 31

Overall Height (IN) 12

Overall Width (IN) 4

Core Type Bar-and-Plate

Core Thickness (IN) 4

Core Length (IN) 24

Core Height (IN) 12

Inlet (IN) 3

Outlet (IN) 3

Inlet/Outlet Neck Location Center

Finish Powder Coated

Color Silver

Material Aluminum
