6" BASIC Lift Kit | Ford F-150

6" Basic Lift Kit Ford F-150 (2021-2025)

Fabtech's world-renowned IFS suspension design for the Ford F150 provides excellent drivability both on and offroad. Heavy-Duty 1/4-Inch-thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration-free operation at high speed. The factory coil over shocks is relocated from the bottom to allow for full steering while achieving 6 Inch of lift. At the rear of the vehicle, the factory 2 Inch block is replaced with a 5-Inch Block and u-bolt system. Fabtech's proprietary steering knuckle geometry provides an excellent lock to lock turning radius to maneuver in tight spots. Get Lifted, have fun and oversee traffic ahead of you.

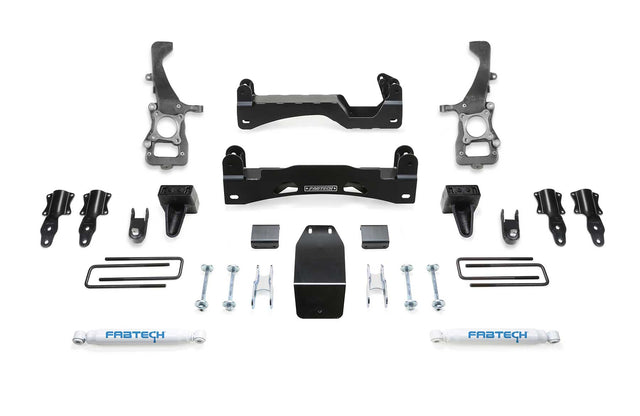

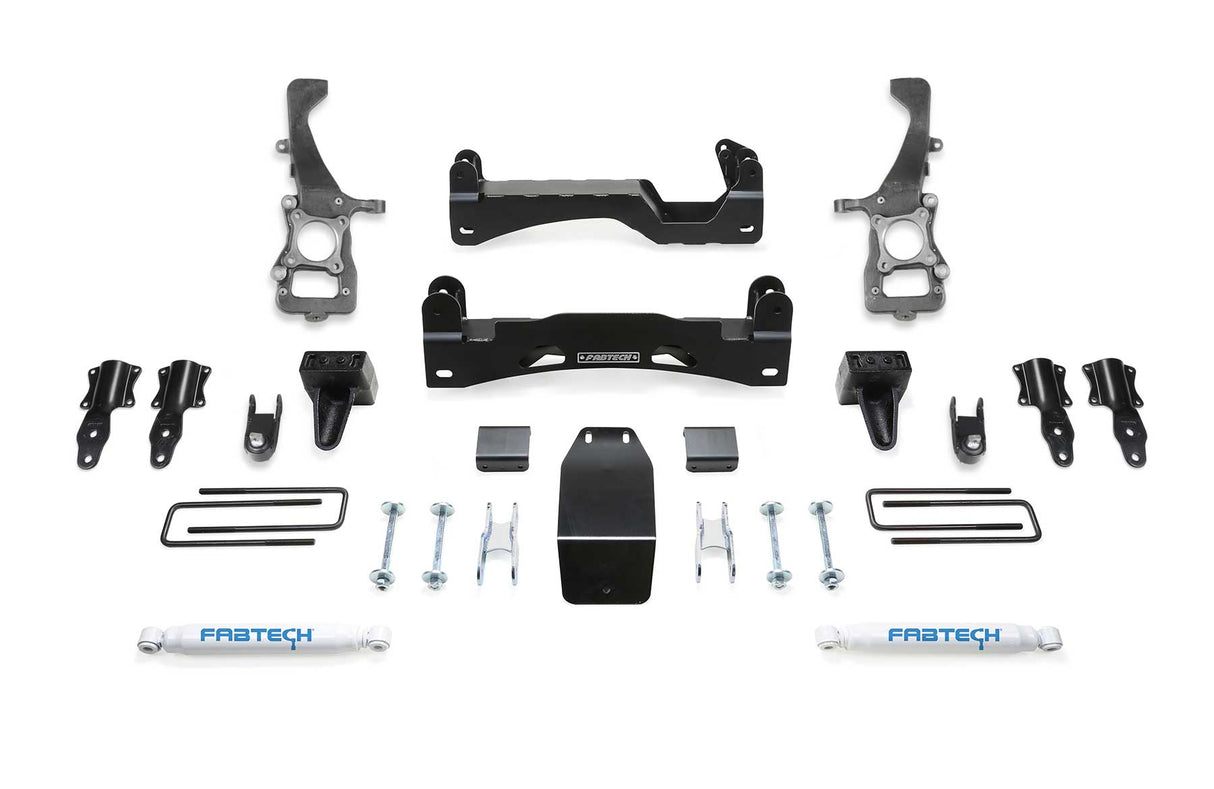

FEATURES AND BENEFITS

• 1/4 in. thick steel lower control crossmembers.
• Welded box design provides additional strength to the front what is desperately missing.
• Extended length ductile steering knuckles provide zero bump steer suspension travel.
• Enhanced driver experience.
• Oversized heavy-duty tie rods
• Heavy-duty front differential skid plates. 1/4 thick steel.
• Limited lifetime warranty

TECH SPECS

Front Lift Amount (IN): 6 Inch

Rear Lift Amount (IN): 3 Inch

Maximum Tire Size: 37 x 12.50

Front Lift Type: Coil Spring Spacer

Rear Lift Type: Lift Blocks and U-Bolts

Shock Type: Hydraulic

Wheel Backspacing (IN): 5

Minimum Wheel Diameter: 20

Wheel Offset (MM): 0

Shocks: With Rear Performance Shock Absorbers

Color: Black Components/ White Shocks

FITMENT

WILL NOT FIT MODELS WITH FACTORY ELECTRONICALLY CONTROL SHOCKS

CAN NOT USE OEM WHEEL AND TIRE

2021-2025 Ford F-150 - 4WD All Submodels

Installation Guide

OVERSIZED ITEM - Ships via LTL delivery: Extra protection and handling for your investment.

Shipping Restrictions May Apply
