2.5 Inch Leveling Kit | Ford Ranger

2.5 Inch Leveling Kit Ford Ranger (2019-2023)

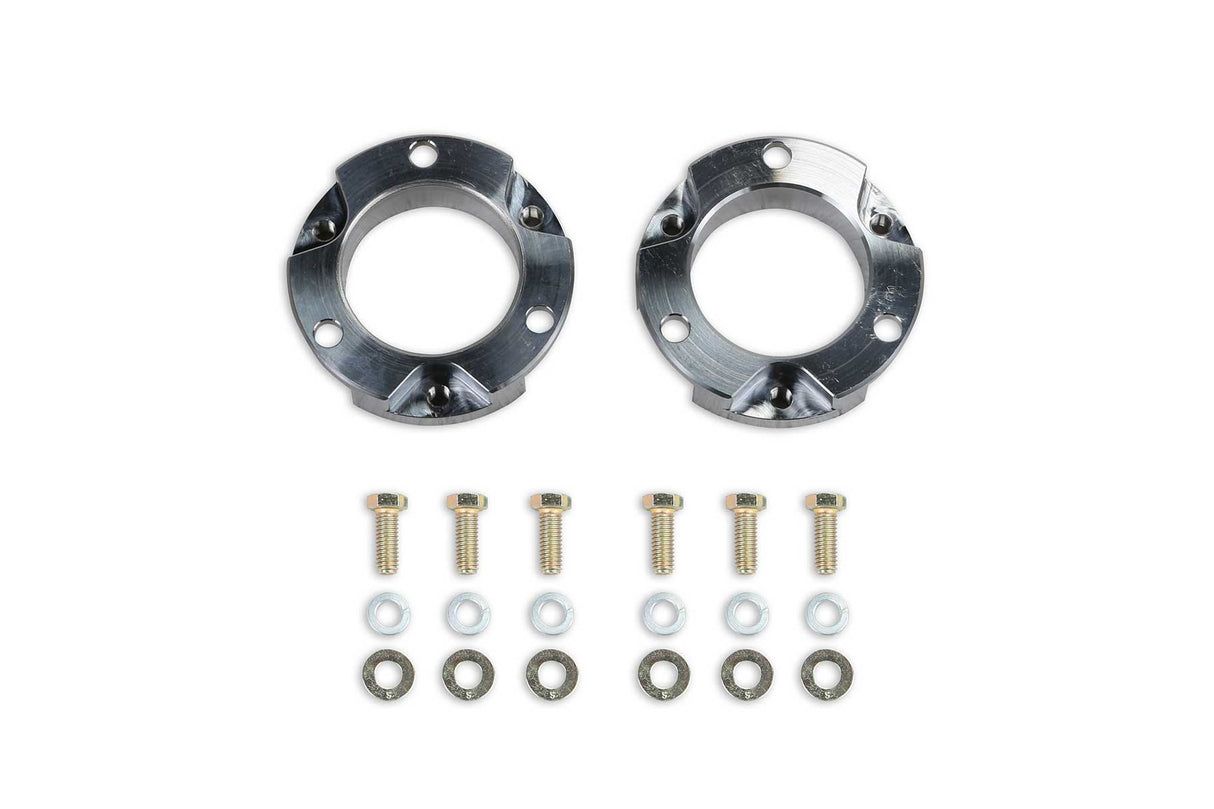

Fabtech's 2019 Ford Ranger 4WD Leveling System features CNC machined aluminum front billet spacers that work in conjunction with the factory Coilover shock assemblies. They are designed to bolt in without the disassembly of the factory coilover shocks for a fast installation. Fabtech engineers have established that the design of these billet spacers is at the maximum height without creating ball joint or tie rod bind when the suspension is cycling throughout the entire range of travel. The Fabtech spacers are installed on top of the coilover. This lift method retains the Ranger's compliant smooth ride with additional front lift to help level and provide clearance for oversized tires.

Fabtech offers an exclusive Trade Up program on all their Leveling Kits. If you ever want to step up to a complete 4" or 6" Fabtech suspension system after you buy a Leveling Kit, you can trade in the previously purchased kit towards the price of a new Fabtech system.

FEATURES AND BENEFITS

• High grade hardware
• Made from aircraft grade billet aluminum
• Properly engineered to eliminate ball joint, tie rod and steering bind
• To ensure product quality, Fabtech builds all of its componentry in house
•  5 years or 60,000 miles limited warranty

TECH SPECS

Lift Height: 2.5 Inch Lift

Type: Strut Assembly Spacer

Maximum Tire Size: 32 x 11.00

Includes Shock/Struts: No

Minimum Wheel Diameter: 20

Wheel Backspacing: 6.5 In.

Wheel Offset: 38 MM

Color: Silver

Material: Aluminum

Estimated Install Time: 2 Hours

FITEMENT

Ford Ranger (2019-2023) 4WD
