Transmission Cooler Universal

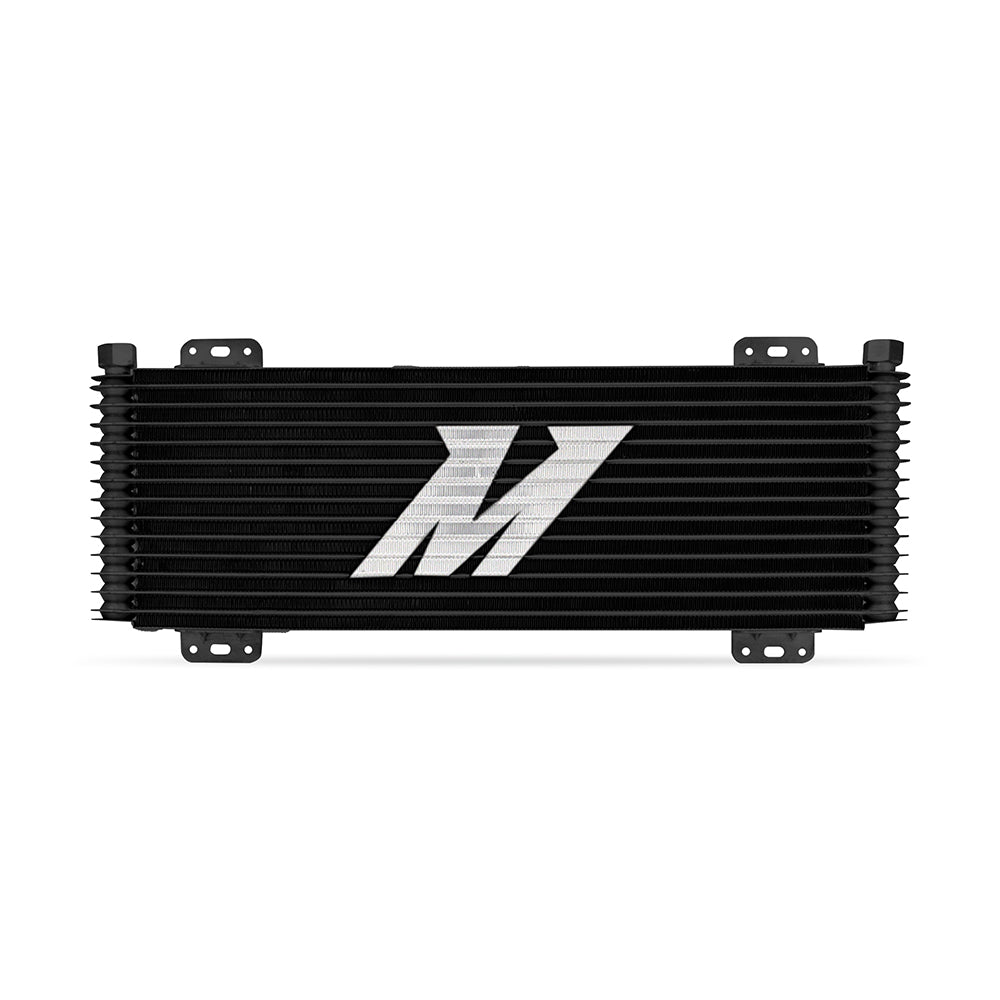

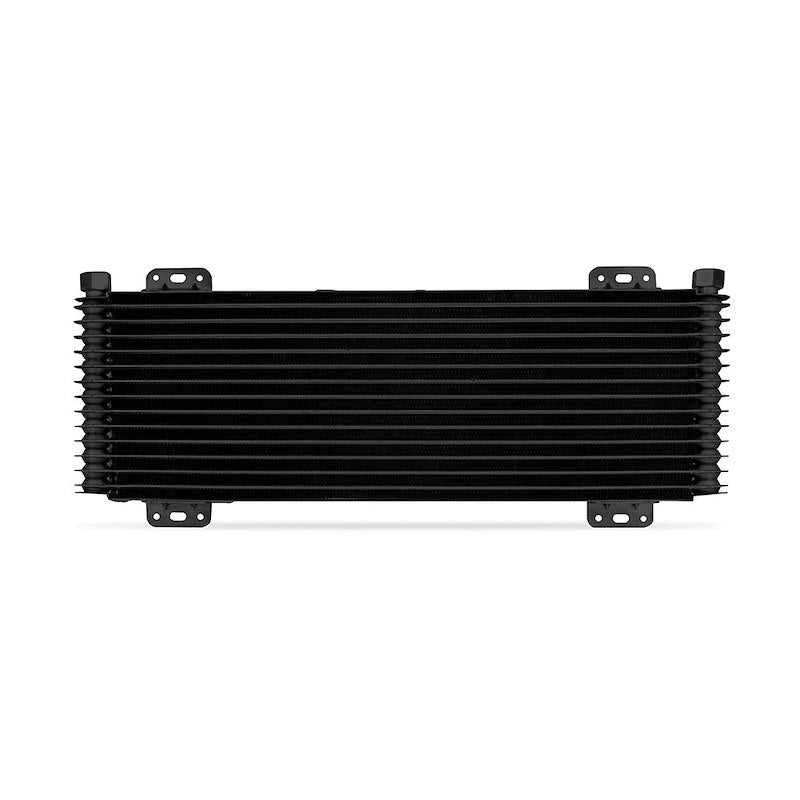

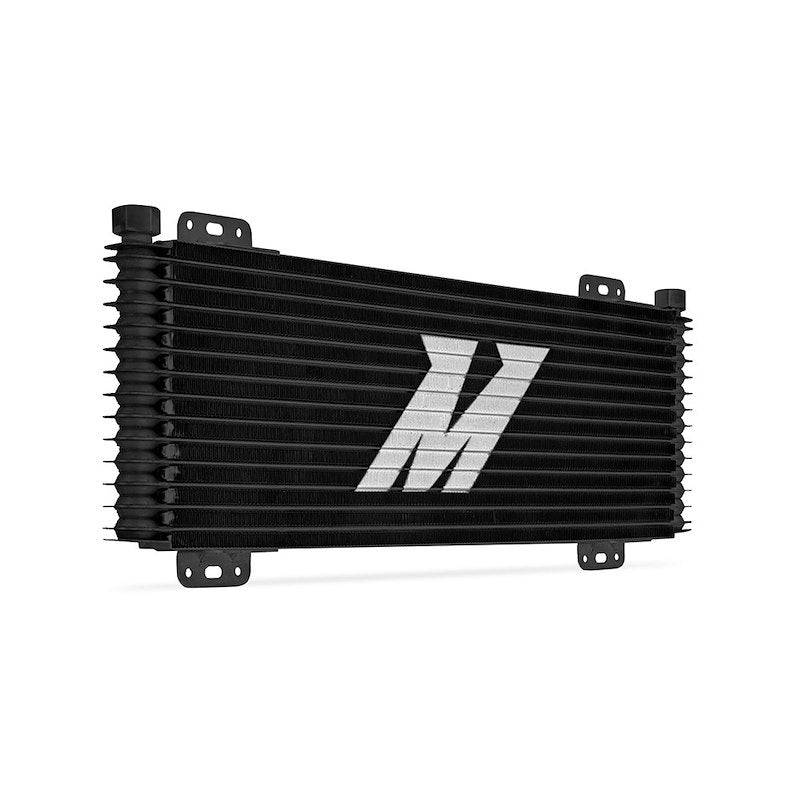

This universal kit applies to any vehicle needing an ancillary cooler to assist in hot climates, towing, or extreme driving conditions. Our heat exchanger features a 40,000 GVW rating, making it ideal for heavy-duty applications. Within this transmission cooler kit, we include the necessary components for a typical installation. Keeping transmission fluid temperatures in check is key to extending the life of your transmission. High fluid temperatures cause reduced lubrication, which can damage seals, clutches, and bearings. Mishimoto has a solution with our highly efficient universal 13 row stacked plate transmission cooler kit. As with all our products, this universal transmission cooler includes the signature Mishimoto Lifetime Warranty.

FEATURE AND BENEFITS

• Efficient stacked plate core for optimal performance with minimal pressure loss
• 40000 pounds gross vehicle weight (GVW) rating makes this cooler ideal for heavy duty applications such as trucks.
• Sleek, durable powder coated finish protects against corrosion

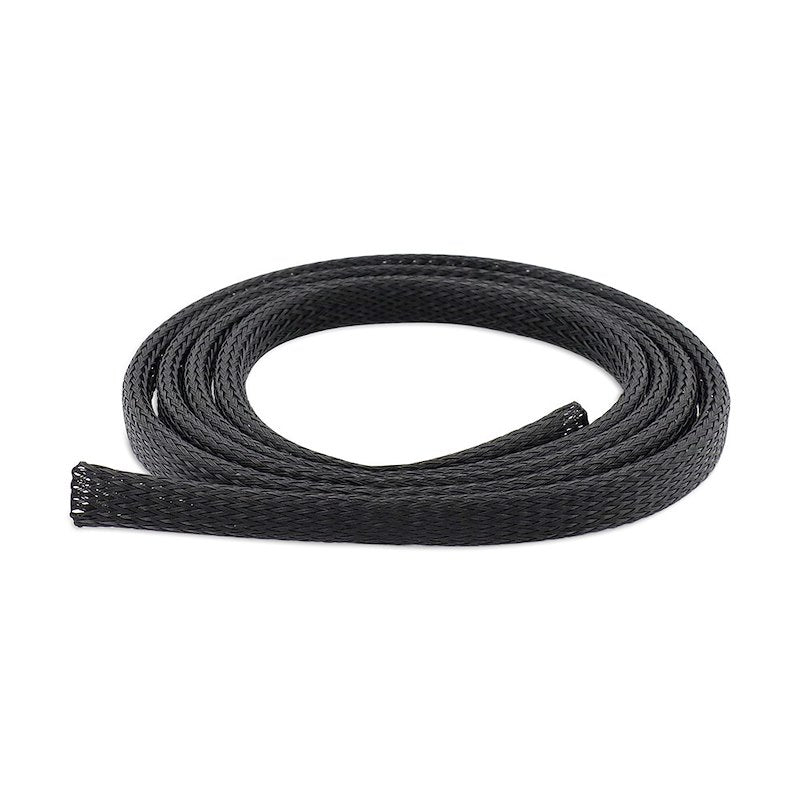

• Hose protection sleeve prevents damage from abrasion

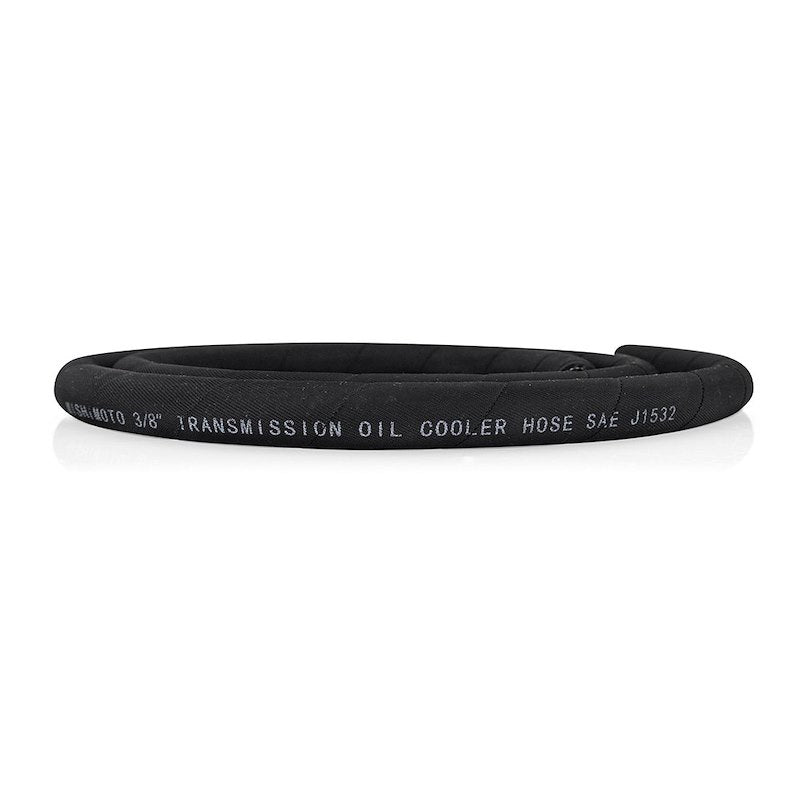

• 50-inch durable SAE J1532 transmission cooler hose for routing fluid to and from the transmission
• SAE J1532 hose explicitly designed for transmission fluids features a spiral polyester reinforcement for increased pressure tolerance

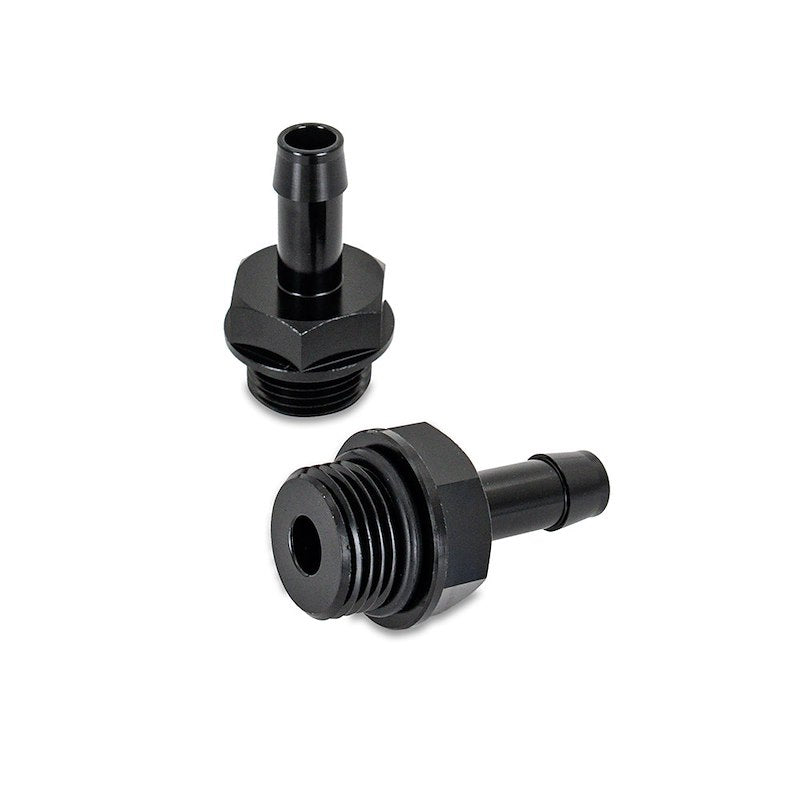

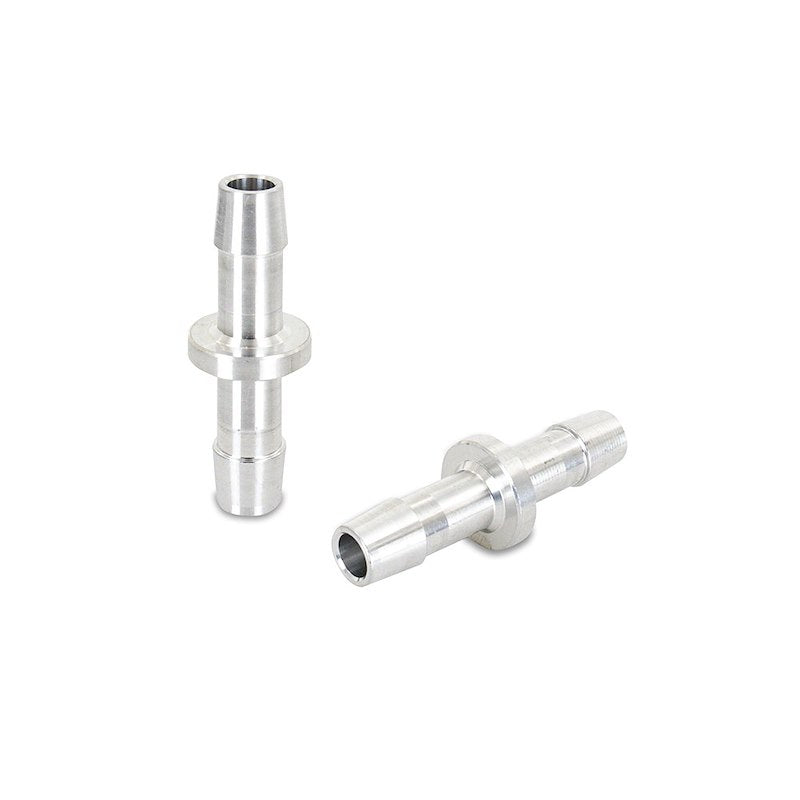

• Precise O-ring sealed 3/4-16 to hose barb adapters provide a leak free seal
• High-Quality stainless-steel worm gear clamps
• Applicable for use with transmission fluid, power steering fluid, engine oil, and a variety of other automotive fluids
• Limited Lifetime Warranty

TECH SPECS

Condition: New

Recommended Use: Transmission Fluid

Construction: Stacked Plate

Number of Cooling Rows: 13

With Fan: No

Core Height (IN): 7.1-inch

Core Width (IN): 22.85-inch

Core Depth (IN): 1-1/4-inch

Finish: Powder Coated

With Mounting Hardware: Yes

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
